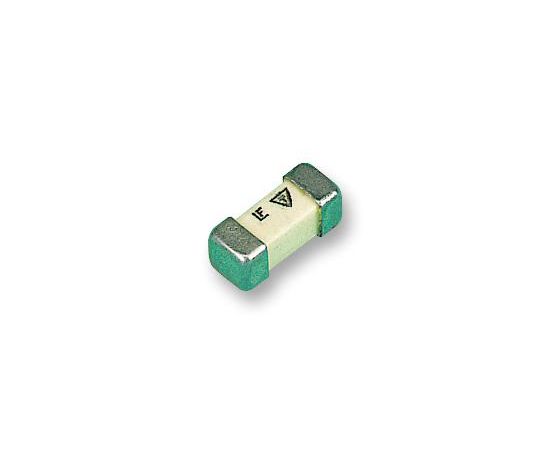

0451003.NRL (LITTELFUSE)
Предохранитель, поверхностный монтаж, Серия NANO2, 3 А, 125 В AC, 32 В DC, Очень Быстродействующий
The 0451003.NRL from Littelfuse is a NANO? very fast acting subminiature surface mount fuse. This is very small and wire in air (WIA) square shape surface mount fuse. It is very suitable for secondary side circuit over current protection applications and is designed for PCB using surface mount technology.
- Current rating of 3A
- Voltage rating of 125VAC/VDC
- Fuse size is 6.10mm x 2.69mm
- UL, CSA and PSE approved
- Wide operating temperature range from -55?C to 125?C
- Low temperature derating
- Ceramic body
- Interrupting rating of 50A at 125VAC/VDC
- Nominal cold resistance of 0.0227ohm
Области применения
Безопасность, Промышленное
