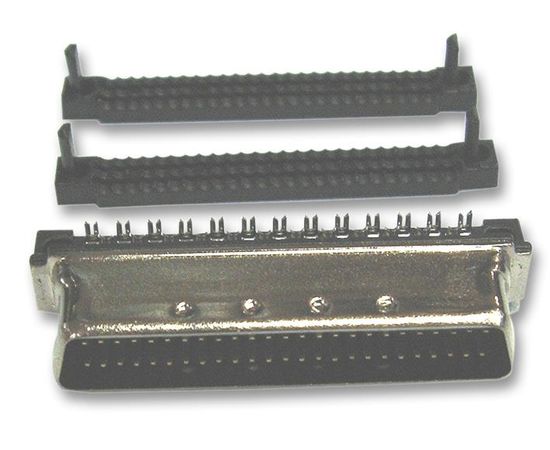

5749621-5 (AMP - TE CONNECTIVITY)
Разъем I/O, 50 контакт(-ов), Штекер, SCSI, IDC / IDT, Серия Amplimite III, Монтаж на Кабель
The 5749621-5 is a 50-way 2-row IDC D-sub Plug with gold over nickel plated phosphor bronze contacts and tin-nickel alloy plated steel shell. This series III connector comes with latch blocks, black thermoplastic housing and accepts 30 to 28AWG round jacketed cable. The shielded AMPLIMITE .050 series headers with action pin contacts offer a high-density D type interface and a solderless board-mount interconnection. The beam characteristics of the pin are designed so that a plastic, as well as elastic, deformation takes place during insertion. The two spring members compress to different degrees to accommodate hole tolerances.
- UL94V-0 Flammability rating
Области применения
Промышленное
Количество Контактов:
50контакт(-ов)
Линейка Продукции:
Серия Amplimite III
Материал Контакта:
Фосфористая Бронза
Монтаж Разъема:
Монтаж на Кабель
Покрытие Контакта:
Контакты с Покрытием из Золота
Тип Оконцовки Контакта:
IDC / IDT
Тип Соединителя:
SCSI
Тип Электрического Разъема:
Штекер
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
