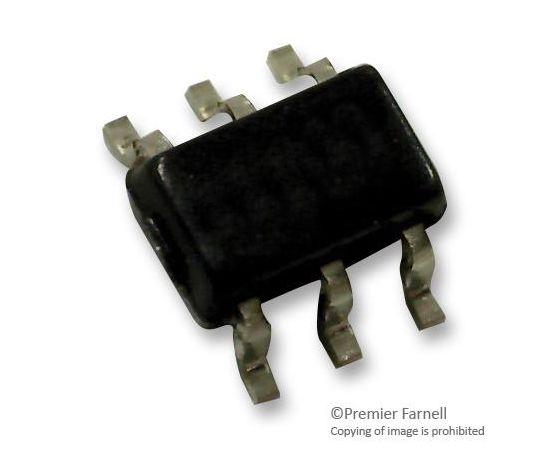

HMC595E (ANALOG DEVICES)

The HMC595E is a SPDT Switch for use in transmit/receive applications which require very low distortion at high incident power levels. The device can control signals from DC to 3GHz and is especially suited for cellular/3G infrastructure, WiMAX and WiBro applications with only 0.3dB typical insertion loss. The design provides a 3W power handling and +65dBm third order intercept at +8V bias. RF1 and RF2 are reflective shorts when "Off". Control inputs A & B are compatible with CMOS and some TTL logic families. This switch is form, fit and function replacement for HMC195E while offering superior electrical performance.
