LTM8026IY#PBF (LINEAR TECHNOLOGY)

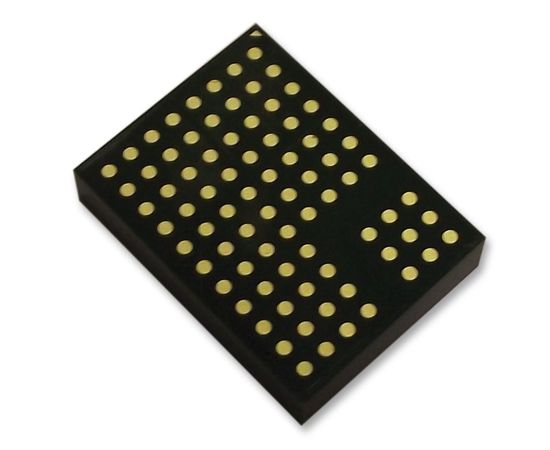

DC/DC POL преобразователь, регулируемый, понижающий, 1МГц, 1.2В до 24В выход, 5А, BGA-81
The LTM8026IY#PBF is a constant-voltage constant-current (CVCC) step-down µModule® Regulator includes the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6 to 36V, the LTM8026 supports an output voltage range of 1.2 to 24V. CVCC operation allows the LTM8026 to accurately regulate its output current up to 5A over the entire output range. The output current can be set by a control voltage, a single resistor or a thermistor. Only resistors to set the output voltage and frequency and the bulk input and output filter capacitors are needed to finish the design.
- Complete step-down switch mode power supply
- Constant-voltage constant-current operation
- Parallelable for increased output current, even from different voltage sources
- Programmable soft-start
- 100kHz to 1MHz Selectable switching frequency
Области применения
Потребительская Электроника, Промышленное, Обработка Сигнала
Количество Выводов:
81вывод(-ов)
Количество Выходов:
1 Выход
Корпус ИС DC / DC Преобразователя:
BGA
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
36В
Максимальное Выходное Напряжение:
24В
Минимальное Входное Напряжение:
6В
Минимальное Выходное Напряжение:
1.2В
Соответствует Фталатам RoHS:
Да
Тип DC / DC Преобразователя:
Модуль
Топология (Общая Схема Соединений):
Понижающий (Понижающий)
Частота Коммутации:
1МГц
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
5А
