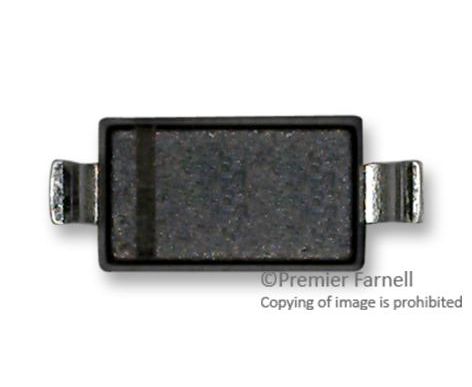

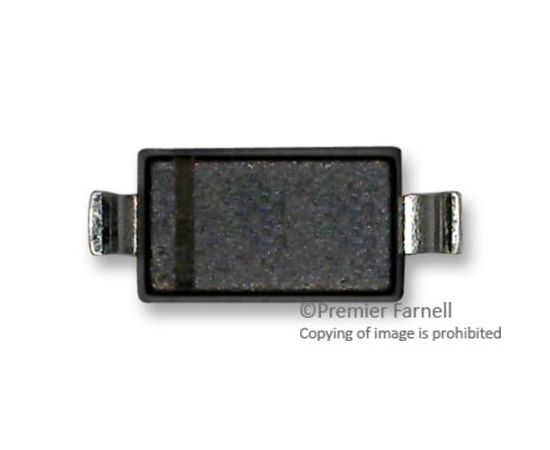

MBR0520LT1G (ON SEMICONDUCTOR)
Выпрямитель Шоттки, 20 В, 500 мА, Одиночный, SOD-123, 2 вывод(-ов), 385 мВ
The MBR0520LT1G is a surface-mount Schottky Power Rectifier with epoxy moulded case. It employs the Schottky barrier principle with a barrier metal that produces optimal forward voltage drop-reverse current trade-off. Ideally suited for low voltage, high frequency rectification or as free-wheeling and polarity protection diodes in surface-mount applications where compact size and weight are critical to the system.
- Cathode band polarity designator
- All external surfaces corrosion-resistant
- Guard-ring for stress protection
- Very low forward-voltage
- UL94V-0 Flammability rating
- For optimal automated board assembly
- AEC-Q101 qualified and PPAP capable
Области применения
Управление Питанием, Авто, Промышленное
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество Выводов:
2вывод(-ов)
Конфигурация Диода:
Одиночный
Линейка Продукции:
MBR05 Series
Максимальная Рабочая Температура:
125°C
Максимальное Значение Напряжения Vrrm:
20В
Максимальное Прямое Напряжение:
385мВ
Максимальный Импульсный Прямой Ток Ifsm:
5.5А
Средний Прямой Ток:
500мА
Стандарты Автомобильной Промышленности:
AEC-Q101
Стиль Корпуса Диода:
SOD-123
Тип упаковки:
Катушка
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
