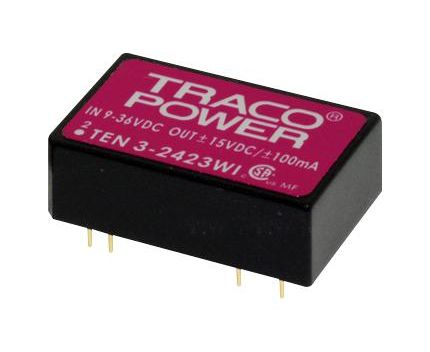

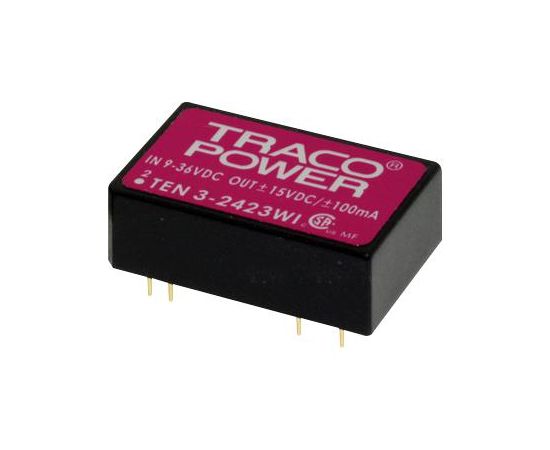

TEN 3-2423WI (TRACOPOWER)
Изолированный DC/DC преобразователь, ITE, 2 Выхода, 3 Вт, 15 В, 100 мА, -15 В, 100 мА
The TEN 3-2423WI from Tracopower is a TEN 3WI series 3W DC to DC converter in 24 pin DIP plastic package. It features ultra-wide 4:1 input voltage. A high efficiency allows operation ambient temperatures of -40°C to +70°C at full load. A built-in EMI input filter complies with EN 55022, class A without need of external components. Further standard features include over voltage protection and continuous short circuit protection. Typical applications for these converters are battery operated equipment and distributed power architectures in communication, instrumentation and industrial electronics, everywhere where isolated, tightly regulated voltages are required.
- Input voltage range from 9VDC to 36VDC (24VDC nominal)
- Output voltage is ±15VDC
- Maximum output current is ±100mA
- Typical efficiency is 80%
- I/O isolation voltage is 1500VDC, typical I/O isolation capacitance is 380pF
- I/O isolation resistance is >1000Mohm at (500VDC), excellent load and line regulation
- Input current at no load is 20mA typical, input current at full load is 150mA
- Switching frequency is 350KHz
- Operating temperature range from -40°C to +85°C
- UL 60950-1, IEC/EN 60950-1 safety standard
Области применения
Промышленное
Выходное Напряжение - Выход 1:
15В
Выходное Напряжение - Выход 2:
-15В
Выходной Ток - Выход 1:
100мА
Выходной Ток - Выход 2:
100мА
Глубина:
32мм
Количество Выходов:
2 Выхода
Линейка Продукции:
TEN 3WI Series
Максимальная Выходная Мощность:
3Вт
Максимальное Входное Напряжение DC:
36В
Минимальное Входное Напряжение DC:
9В
Монтаж Преобразователя Постоянного Тока:
Сквозное Отверстие
Тип DC / DC Преобразователя:
DIP
Тип Выхода DC / DC Преобразователя:
Фиксированный
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
Высота:
10.2мм
RoHS статус:
Да
Ширина:
20мм
