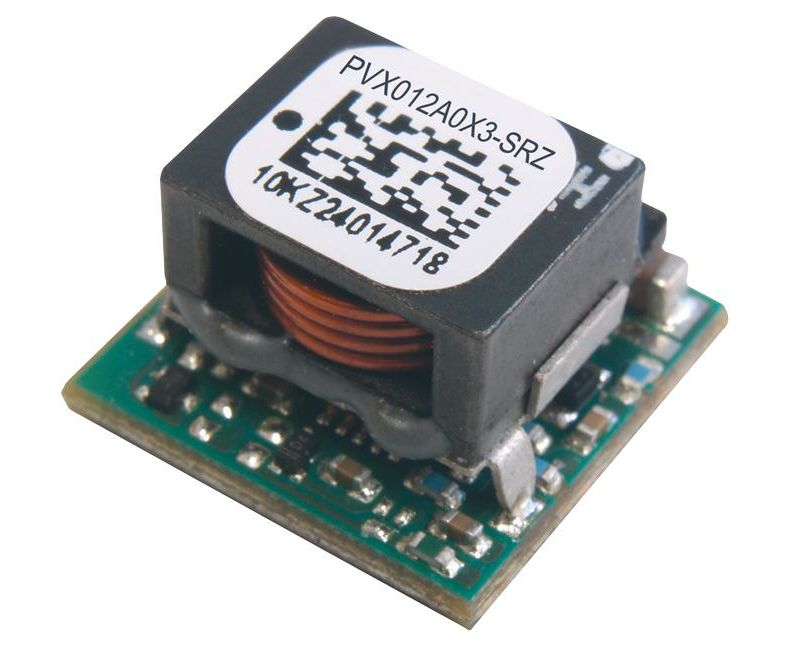

PVX012A0X3-SRZ (GE CRITICAL POWER)
POL DC/DC преобразователь, Analog Pico Dlynx, 66 Вт, 600 мВ, 5.5 В, 12 А, Регулируемый, DOSA
The PVX012A0X3-SRZ is a 66W non-isolated DC/DC Power Module delivers up to 12A of output current. This DC/DC converter operate over a wide range of input voltage from 3 to 14.4VDC and provide a precisely regulated output voltage from 0.6 to 5.5VDC, programmable via an external resistor. Features include remote ON/OFF, adjustable output voltage, over current and over-temperature protection. The Tunable Loop™ feature allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output capacitance leading to savings on cost and PWB area.
- DOSA based
- Tunable Loop to optimize dynamic output voltage response
- Power good signal
- Fixed switching frequency
- Output overcurrent protection (non-latching)
- Over-temperature protection
- Remote ON/OFF
- Ability to sink and source current
- Cost efficient open frame design
Области применения
Управление Питанием, Промышленное, Связь и Сеть
Глубина:
12.2мм
Линейка Продукции:
-
Максимальная Выходная Мощность:
66Вт
Максимальное Входное Напряжение DC:
14.4В
Максимальное Выходное Напряжение:
5.5В
Максимальный Выходной Ток:
12А
Минимальное Входное Напряжение DC:
3В
Минимальное Выходное Напряжение:
600мВ
Тип DC / DC Преобразователя:
DOSA
Тип Выхода DC / DC Преобразователя:
Регулируемый
SVHC (Особо Опасные Вещества):
To Be Advised
Высота:
8.5мм
RoHS статус:
Да
Ширина:
12.2мм
