0906-0-15-20-76-14-11-0 (MILL MAX)
Контакт, Разъем, THT, Подпружиненный Контакт, Точка, 2 А, 5.24 мм, 25 г

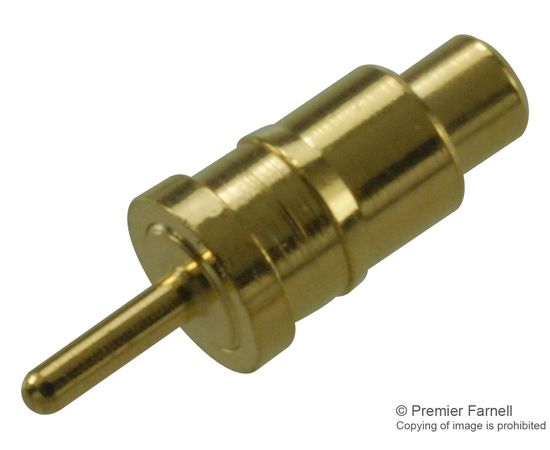

The 0906-0-15-20-76-14-11-0 from Mill Max is a discrete spring loaded contacts with through hole mount.
- 0.0195 mid stroke, 0.039 max stroke, 60g force at mid stroke and 25g initial force (pre-load)
- Standard stroke
- Solder mount in 0.020 minimum mounting hole
- Overall length is 0.324
- Sleeve & plunger material is copper alloy with 20µ" gold over nickel finish
- Beryllium copper spring with 10µ" gold over nickel finish
- Durability is 1000000 cycles
- Current rating is 2A continuous, 3A peak
- Maximum contact resistance is 20mohm
- Operating temperature range from -55°C to +125°C
Области применения
Тестирование и Измерение
Линейка Продукции:
-
Начальная Сила Упругости Пружины:
25г
Общая Длина:
5.24мм
Осевой Шаг:
-
Рабочий Ход Силы Упругости Пружины:
60г
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Кончика Соединителя:
Точка
Тип Соединителя:
Подпружиненный Контакт
Ток:
2А
SVHC (Особо Опасные Вещества):
No SVHC (20-Jun-2016)
RoHS статус:
Y-Ex
