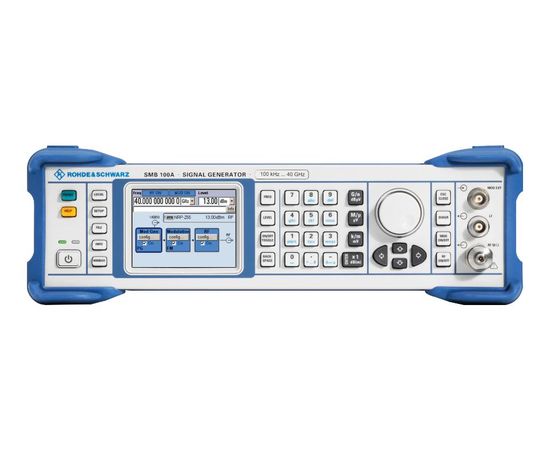

SMB100A/B106 (ROHDE & SCHWARZ)
Генератор РЧ и микроволновых сигналов, 1 канал, 6ГГц
The SMB100A/B106 from Rohde & Schwarz is a versatile, compact RF and microwave signal generator with 9KHz to 6GHz frequency option. In addition to outstanding spectral purity and high output power, it features easy operation, comprehensive functionality and low cost of ownership. The R&S SMB100A is optimally suited for development, production and service or wherever an analogue RF or microwave signal is required. It can be ideally used for measuring the blocking characteristic. Its low weight and compact design makes it suitable for a wide range of applications including mobile applications. It has a high quality shielding, sensitivity measurements on low-noise satellite receivers can only be made with RF-leakage-proof signal sources.
- AC input voltage range from 90V to 264V
- Maximum input current is 1.4A (100V) to 0.6A (240V) with 60W
- Output power (PEP) ranging from +18dBm to -120dB
- Standard high power
- Setting time of SCPI mode is < 2.5ms and list mode is < 1ms
- Remote control via LAN, USB and GPIB including emulation modes for legacy instruments
- All important analogue modulations with AM, FM/?M and pulse modulation supported
- Intuitive user interface with graphical display of signal flow for easy operation
- Temperature range from 0°C to +55°C
- Dimension is 344mm x 112mm x 368mm (W x H x D) and 5.3Kg
Области применения
Тестирование и Измерение
Содержание
SMB100A RF and microwave signal generator, Including power cable, quick start guide and CD-ROM (with operating and service manual).
Примечания
Для данного продукта доступна услуга калибровки. Возможность выбора услуги стандартной сертификации или международно-признанной аккредитации UKAS. Для получения более подробной информации, посетите нашу страницу калибровки.
Гарантия Производителя:
3 года
Количество Каналов:
1 канал
Линейка Продукции:
-
Модуляция Генератора Сигнала:
AM, FM, PM, ШИМ
Полоса Пропускания:
6ГГц
Тип Генератора Сигнала:
Микроволна
Тип Штекера:
-
SVHC (Особо Опасные Вещества):
No SVHC (20-Jun-2016)
RoHS статус:
Да
