3-1827233-6 (AMP - TE CONNECTIVITY)
Составной разъем платы, свободная высота, Серия FSI, 440 контакт(-ов), Штекер, 0.5 мм

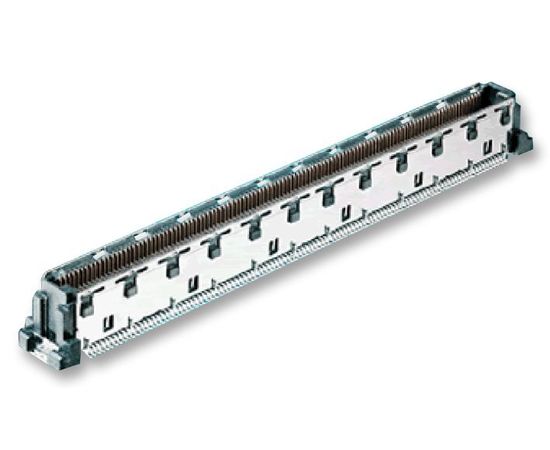

The 3-1827233-6 is a 440-way 4-row 0.5mm Free Height Vertical Plug with gold-plated copper alloy contacts and surface mount termination. This FH series connector comes with black high temperature thermoplastic housing and tin-plated solder tail, designed for parallel board to board stacking applications that require high density. The 0.5mm FH product is specified by the PICMG COM Express standard as the module to carrier card interface.
- Giga ground shielding options on all parts
- Polarized locating posts
- UL94V-0 Flammability rating
- 0.5A Current rating
- 50VAC Voltage rating
- -40 to +85°C Operating temperature range
Области применения
Промышленное
Количество Контактов:
440контакт(-ов)
Количество Рядов:
2ряд(-ов)
Линейка Продукции:
Серия FSI
Материал Контакта:
Медный Сплав
Покрытие Контакта:
Контакты с Покрытием из Золота
Тип Оконцовки Контакта:
Поверхностный Монтаж
Тип Электрического Разъема:
Штекер
Шаг Контактов:
0.5мм
Шаг Ряда:
12мм
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
