R125154002 (RADIALL)
Разъем РЧ / Коаксиальный, SMA Коаксиальный, Прямоугольный Штекер, Пайка, 50 Ом, RG402, Латунь

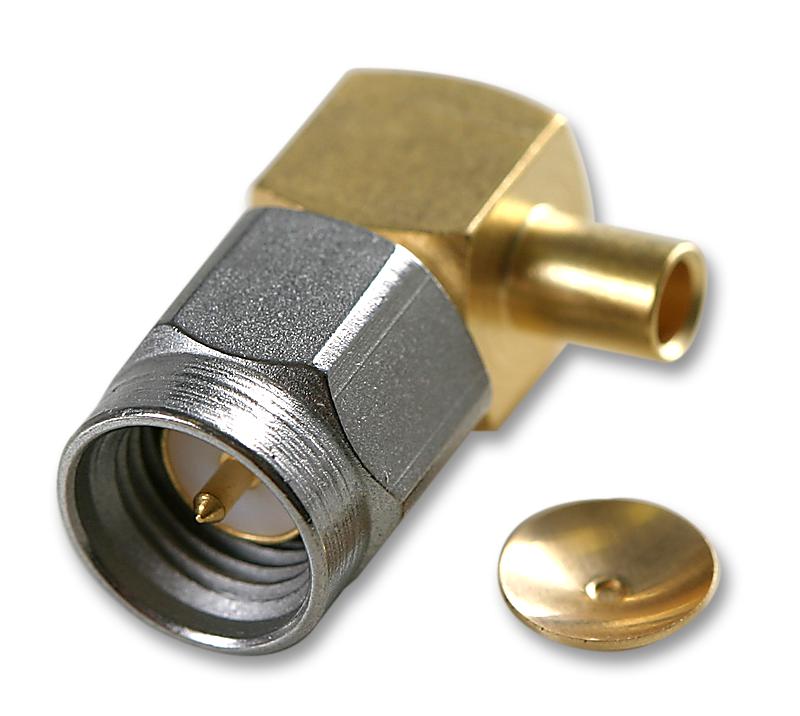

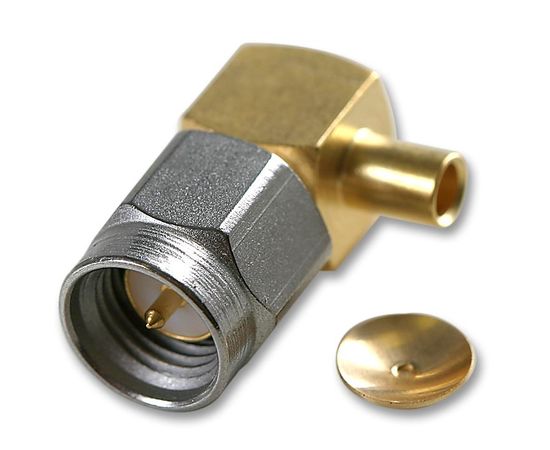

The R125154002 is a solder SMA Right Angle Plug for use with KS2 and RG402 RF coaxial cables. It has gold over nickel plated stainless steel body with gold over nickel plated brass centre contact and a PTFE insulator.
- 5000MR Minimum insulation resistance
- 1000Veff Minimum dielectric withstanding voltage
- 500Veff Maximum voltage rating
- 500-cycle Minimum mating life
- -65 to 105°C Operating temperature range
Области применения
Радиочастотная Связь, Промышленное
