ESQ-112-14-G-T (SAMTEC)
Разъем типа плата-плата, приподнятый, 2.54 мм, 36 контакт(-ов), Гнездо, Серия ESQ, Пайка

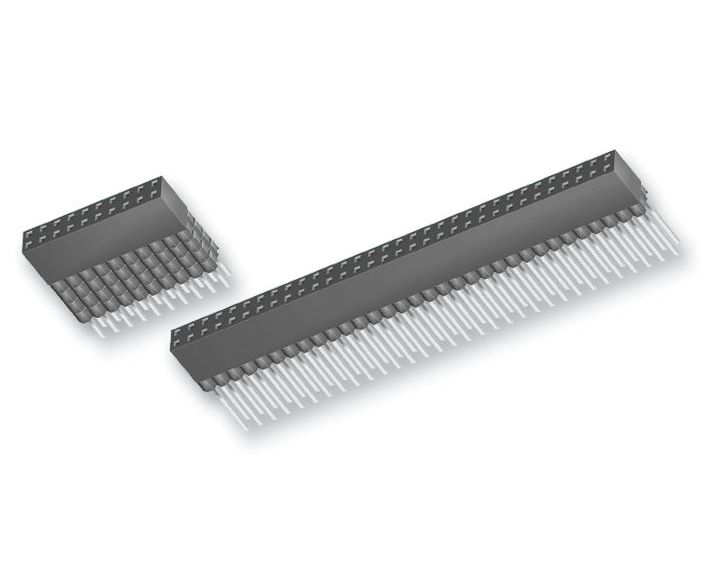

The ESQ series from Samtec are PC/104 through hole elevated socket strips. It mates with Samtec TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH and HTSS series of connectors. These are self nesting socket strips which has standard and low insertion force contacts with 0.025" (0.635mm) square tail.
- Orderable with single/dual/triple rows (-S/-D/-T option)
- Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientation
- High operating temperature range of -55°C to 125°C for 20µ" gold plated contacts
- Contact material is phosphor bronze
- Black glass filled polyester insulator material
- Tiger Buy contact system
- Complies with UL E111594 and CSA 090871_0_000 standards
Области применения
Промышленное
Количество Контактов:
36контакт(-ов)
Количество Рядов:
3ряд(-ов)
Линейка Продукции:
Серия ESQ
Материал Контакта:
Фосфористая Бронза
Покрытие Контакта:
Контакты с Покрытием из Золота
Тип Оконцовки Контакта:
Пайка
Тип Электрического Разъема:
Гнездо
Шаг Контактов:
2.54мм
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
