RPI-TV-UHAT (RASPBERRY-PI)

E2943943
3 580 Р
(включая НДС 20%)
Доступно: 1 шт.


Add-On Board, TV HAT For Raspberry Pi, Digital TV Tuner DVB-T2, Network Streaming

Документация
Technical Data Sheet EN
Operating Instructions EN

БрендRASPBERRY-PI НаименованиеRPI-TV-UHAT Цена заШтука Страна производстваChina СкладFarnell

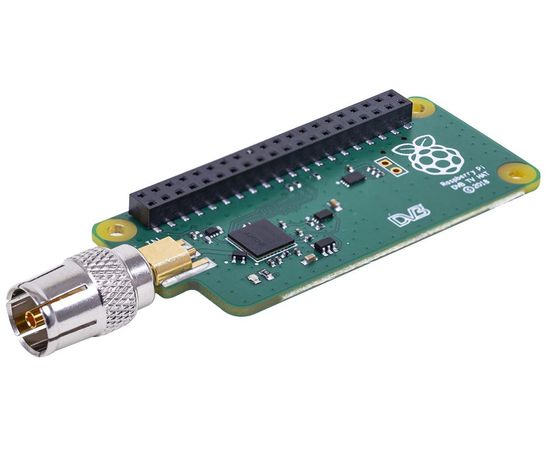

Add-On Board, TV HAT For Raspberry Pi, Digital TV Tuner DVB-T2, Network Streaming

The Raspberry Pi TV-uHAT allows you to receive digital terrestrial TV broadcast systems which includes DVB-T and DVB-T2 on a Raspberry Pi. With the board you can receive and view TV on a Raspberry Pi or create a TV server that allows you to stream received TV over a network to other devices. The TV uHAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network). Performance when receiving and viewing TV on a Pi can vary and it is recommended to use a Raspberry Pi 3 B or B+ to do this. Raspberry Pi TV uHAT follows a new form factor of HAT which is detailed in the product brief. The board comes with a set of mechanical spacers, a 40 way header and an aerial adaptor. Digital Video Broadcast (DVB) is a widely adopted standard for transmitting broadcast Television, countries that have adopted the DVB standard can be found here: https://www.dvb.org/resources/public/images/site/dvb-t2_map.pdf



  • Sony CXD2880 TV tuner
  • Supported TV standards: DVB-T2, DVB-T
  • Reception frequency: VHF III, UHF IV, UHF V
  • Channel bandwidth DVB-T2: 1.7MHz, 5MHz, 6MHz, 7MHz, 8MHz
  • Channel bandwidth DVB-T: 5MHz, 6MHz, 7MHz, 8MHz



Области применения

IoT (Интернет Вещей), Хобби и Образование, Разработка Электроники, Встроенные Конструкции и Разработка


Содержание

DVB HAT, 40 way header, aerial adaptor and spacers


Примечания

Please Note: It is the responsibility of the end user to ensure that they have the necessary permissions/licences to receive broadcast television in their country.
Архитектура Ядра:
-
Для Использования с:
Raspberry Pi
Линейка Продукции:
-
Название Семейства Чипа:
-
Номер Ядра Чипа:
CXD2880
Подархитектура Ядра:
-
Производитель Чипа:
Sony
Содержимое Комплекта:
Raspberry Pi TV HAT, 3 x Standoffs, 5 x Screws, 40 Way GPIO Header, TV Aerial Adapter
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
