HR04GW101 SL359 (ALPHA WIRE)
Датчик Кабеля, 4-позиционный Прямой Штекер Датчика M8, 4-позиционное Угловое Гнездо Датчика M8

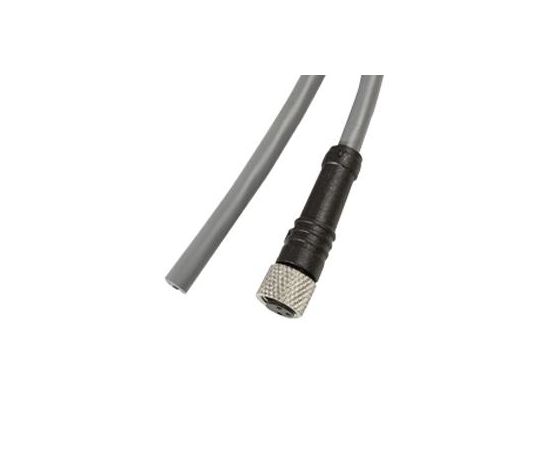

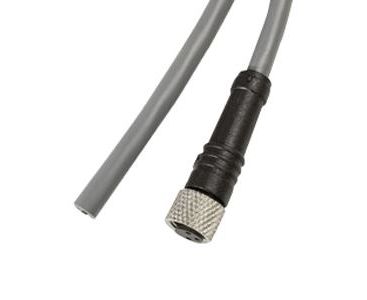

The HR04GW101 SL359 from Alpha Wire is a cordset. The cordset has M8 straight male connector on one end and M8 female right angle connector on the other end. This cordset makes easier for reliable and high-performance industrial connectivity.
- 4 poles
- 22AWG (26/36) bare copper conductor
- EcoFlex PUR cable, insulation made of mPPE, slate zero-halogen polyurethane jacket
- IP67, IP68/NEMA 6P protection
- Operating temperature range from -50°C to 90°C
- 4x static, 5x dynamic bend radius
- Cordset handle flex applications up to 5 million flex life cycles
- Rated voltage is 600V
- C(RU)AWM I/II A/B FT2, AWM 21959, 60C oil, sun res approval
- Cable length is 10meter
Длинна Кабеля - Дюймовый:
32.81фут
Длинна Кабеля - Метрическая:
10м
Линейка Продукции:
ALPHA CONNECT Series
Соединитель Типа A:
4-позиционный Прямой Штекер Датчика M8
Тип Соединителя B:
4-позиционное Угловое Гнездо Датчика M8
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
