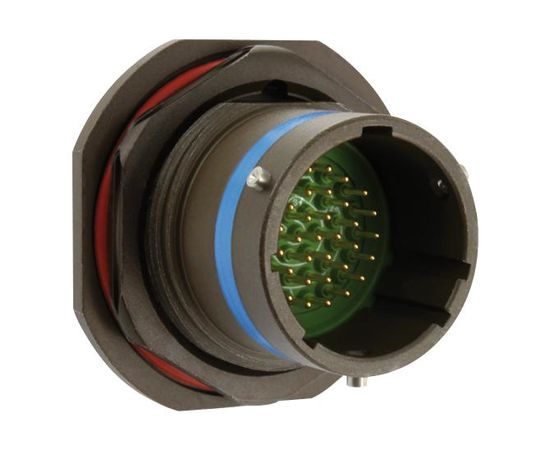

MS27468T25B61PA (SOURIAU)
Круглый разъем, MIL-DTL-38999 Серия I, Гнездо с Зажимной Гайкой, 61 контакт(-ов), Обжимной Контакт
The MS27468T25B61PA from Souriau is a MIL-DTL-38999 Series I is a jam nut receptacle circular connector with 61 contacts. It is used in various applications that needs extremely reliable interconnections with high density contact arrangements in a miniature circular shell. This connector features high contact density, versatility and high reliability. It has a well proven electrical capability and designed to withstand extreme shock, exposure and vibration. Typical applications include marine equipments, communications equipments, medical instrumentation, ballistic missiles & weapon systems, test equipments armoured carriers & tanks.
- Quick mating, 3 point bayonet lock system
- Mismating, error proof positioning keyway polarization (5 position )
- 100% scoop proof contact protection, thread for backfitting, supplied without backshell
- Thermoplastic or metallic insulator, liquid silicone rubber or fluorocarbone elastomer grommet/seal
- Insulation resistance is greater than 5000MW (at 500Vcc)
- Endurance is 500 mating / unmating operations
- Salt spray exposure of 500hour as per MIL STD 1344 method 1001
- Operating temperature range from -65°C +175°C
- Aluminium alloy body material with olive green cadmium plating
- Copper alloy crimp pin contacts with gold plating
Области применения
Оборона, Военная и Авиационно-космическое, Промышленное
Военная Спецификация:
MIL-DTL-38999 Серия I
Вращение Вставки:
A
Класс Обслуживания:
Устойчивый к Коррозии, ЭМИ
Количество Контактов:
61контакт(-ов)
Контактная Схема:
25-61
Линейка Продукции:
MIL-DTL-38999 Series I
Материал Контакта:
Медный Сплав
Материал Корпуса Соединителя:
Корпус из Алюминия
Покрытие Контакта:
Золото
Покрытие Корпуса Разъема:
Зеленовато-желтый Хромат поверх Кадмия
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Корпуса Круглого Разъема:
Гнездо с Зажимной Гайкой
Стиль Соединения:
Байонетный
Тип Круглого Контакта:
Обжимной Контакт
SVHC (Особо Опасные Вещества):
No SVHC (12-Jan-2017)
RoHS статус:
Нет
