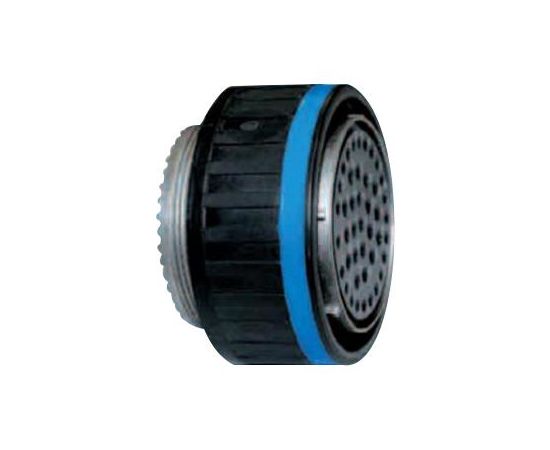

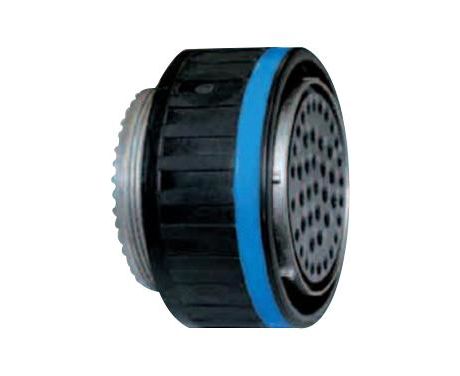

D38999/26WH35PN-LC (SOURIAU)
Круглый разъем, MIL-DTL-38999 Серия III, Прямой Штекер, 100 контакт(-ов)
The D38999/26WH35PN-LC from Souriau is a MIL-DTL-38999 Series III plug with RFI shielding circular connector with 100 contacts and aluminium body material. This high reliable connector is in accordance with MIL-DTL-38999 Series III, EN 3645 and also meets many customer's standards like Rolls Royce, ABS, BACC63CT/CU, BACC63DB/DC. It features high contact density, high performance contact retention system and ensures high temperature withstanding. The MIL-DTL-38999 Series III connectors provide superior strength in vibrations and better retention characteristics than plastic clips. It is designed to withstand the extreme shock, exposure and vibration.
- Robust, lightweight, resistance to fluids, screw coupling and 100% scoop proof protection
- Thermoplastic insulator, silicone elastomer grommet and interfacial seal
- Insulation resistance of >= 5000Mohm (under 500VDC)
- Multi-contact technology, unique clip retention technology and high power transmission up to 850A
- IP67 high performance sealing (each contact cavity is individually sealed)
- Salt spray exposure of 500hour
- Operating temperature range from -65°C to +175°C
- Endurance of 500 mating/unmating cycles
- Aluminium body material with olive drab cadmium plating
- Copper alloy crimp pin contacts with gold plating (connector delivered without contacts)
Области применения
Оборона, Военная и Авиационно-космическое, Промышленное
Военная Спецификация:
MIL-DTL-38999 Серия III
Вращение Вставки:
N
Класс Обслуживания:
Устойчивый к Коррозии, ЭМИ
Количество Контактов:
100контакт(-ов)
Контактная Схема:
23-35
Линейка Продукции:
MIL-DTL-38999 Series III
Материал Контакта:
Медный Сплав
Материал Корпуса Соединителя:
Корпус из Сплава Алюминия
Покрытие Контакта:
Золото
Покрытие Корпуса Разъема:
Зеленовато-желтый Хромат поверх Кадмия
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Корпуса Круглого Разъема:
Прямой Штекер
Стиль Соединения:
С Резьбой
Тип Круглого Контакта:
Обжимной Контакт - Контакты в Комплект Не Входят
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Нет
