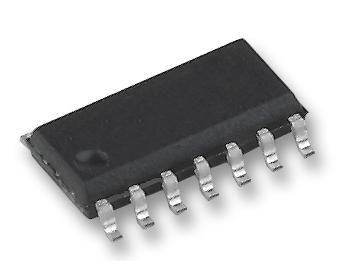

TL084ID (TEXAS INSTRUMENTS)
Операционный усилитель, четверной, 4 Усилителя, 3 МГц, 13 В/мкс, 7В до 36В, SOIC, 14 вывод(-ов)
The TL084ID is a JFET-input Operational Amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset currents and low offset-voltage temperature coefficient.
- 1.4mA/ch Typical low power consumption
- Wide common-mode and differential voltage ranges
- 30pA Typical low input bias current
- 5pA Typical low input offset current
- Output short-circuit protection
- 0.003% Typical low total harmonic distortion
- JFET input stage high input impedance
- Latch-up-free operation
- 13V/µs Typical high slew rate
- Common-mode input voltage range includes VCC+
- Green product and no Sb/Br
Области применения
Потребительская Электроника, Переносные Устройства, Компьютеры и Периферия
Предупреждения
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Диапазон Напряжения Питания:
7В до 36В
Количество Выводов:
14вывод(-ов)
Количество Усилителей:
4 Усилителя
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Минимальная Рабочая Температура:
-40°C
Полоса Пропускания:
3МГц
Скорость Нарастания:
13В/мкс
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
SOIC
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
