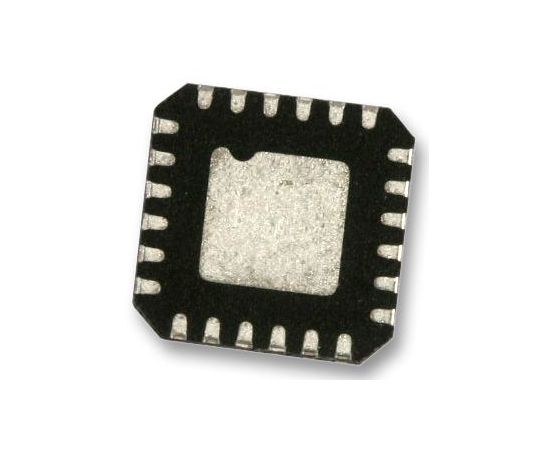

ADL5387ACPZ (ANALOG DEVICES)
РЧ модулятор/демодулятор, 50МГц до 2ГГц, 4.75В до 5.25В питание, LFCSP-24
The ADL5387ACPZ is a broadband Quadrature I/Q Demodulator that covers an RF/IF input frequency range from 30MHz to 2GHz. With a NF = 13.2dB, IP1dB = 12.7dBm and IIP3 = 32dBm at 450MHz, the ADL5387 demodulator offers outstanding dynamic range suitable for the demanding infrastructure direct-conversion requirements. The differential RF/IF inputs provide a well-behaved broadband input impedance of 50R and are best driven from a 1:1 balun for optimum performance. Ultra broadband operation is achieved with a divide-by-2 method for local oscillator (LO) quadrature generation. Over a wide range of LO levels, excellent demodulation accuracy is achieved with amplitude and phase balances 0.05dB and 0.4°, respectively. The demodulated in-phase (I) and quadrature (Q) differential outputs are fully buffered and provide a voltage conversion gain of >4dB. The buffered baseband outputs are capable of driving a 2Vp-p differential signal into 200R.
- 60MHz to 4GHz LO input at 2 x fLO
- 31dBm at 900MHz Input IP3
- 62dBm at 900MHz Input IP2
- 13dBm at 900MHz Input P1dB
- 12.0dB at 140MHz, 14.7dB at 900MHz Noise figure (NF)
- >4dB Voltage conversion gain
- Baseband I/Q drive 2Vp-p into 200R
- Single 5V supply
Области применения
Радиочастотная Связь, Беспроводное, Связь и Сеть
Количество Выводов:
24вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальная Частота:
2ГГц
Максимальное Напряжение Питания:
5.25В
Минимальная Рабочая Температура:
-40°C
Минимальная Частота:
50МГц
Минимальное Напряжение Питания:
4.75В
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Радиочастотной Микросхемы:
LFCSP
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
