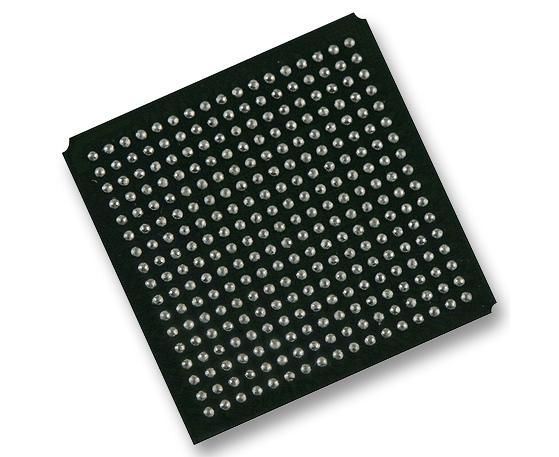

TMS320DM6467ZUT7 (TEXAS INSTRUMENTS)
DSP, Фиксированная Точка, 32бита, 729 МГц, FCBGA, 529 вывод(-ов)
The TMS320DM6467ZUT7 is a Digital Media System-on-Chip leverages TIs DaVinci™ technology to meet the networked media encode and decode digital media processing needs of next-generation embedded devices. The DM6467 enables OEMs and ODMs to quickly bring to market devices featuring robust operating systems support, rich user interfaces, high processing performance and long battery life through the maximum flexibility of a fully integrated mixed processor solution. The dual-core architecture of the DM6467 provides benefits of both DSP and Reduced Instruction Set Computer (RISC) technologies, incorporating a high-performance TMS320C64x+ DSP core and an ARM926EJ-S core. The TMS320C64x+™ DSP is the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform.
- High-performance digital media SoC
- Fully software-compatible with C64x and ARM9™
- Eight highly independent functional units
- Load-store architecture with non-aligned support
- DSP instruction extensions and single cycle MAC
- Embedded Trace Buffer™ (ETB11™) with 4kB memory for ARM9 debug
- Corresponding clock reference generator (CRGEN) modules for system time-clock recovery
- Enhanced direct-memory-access (EDMA) controller
- One serial peripheral interface (SPI) with two chip-selects
- Master/slave inter-integrated circuit (I?C Bus™)
- Two multichannel audio serial ports (McASPs)
- Green product and no Sb/Br
Области применения
Визуализация, Видео и Зрение, Связь и Сеть
Количество I/O:
33I/O
Количество MIPS:
5832
Количество Бит:
32бита
Количество Выводов:
529вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания Ядра:
1.2В
Минимальная Рабочая Температура:
0°C
Минимальное Напряжение Питания Ядра:
1.05В
Размер Флэш-памяти:
-
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Процессора Цифровых Сигналов:
FCBGA
Тип Встроенного Интерфейса:
HPI, I2C, SPI, UART, USB
Тип Процессора Цифровых Сигналов:
Фиксированная Точка
Частота:
729МГц
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Y-Ex
