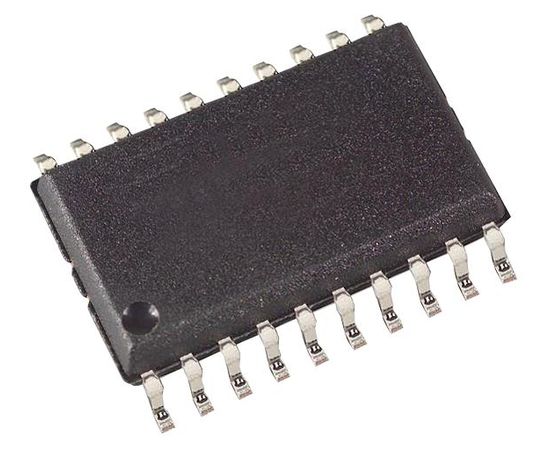

CY74FCT245CTSOC (TEXAS INSTRUMENTS)
Приемопередатчик, неинвертирующий, 3 состояния, 4.75В до 5.25В, SOIC-20
The CY74FCT245CTSOC is an octal Bus Transceiver with 3-state outputs. This device contains eight non-inverting bidirectional buffers with 3-state outputs and is intended for bus-oriented applications. The transmit/receive (T/R) input determines the direction of data flow through this bidirectional transceiver. Transmit (active high) enables data from A ports to B ports. The output enable (OE), when high, disables both the A and B ports by putting them in the high-impedance state. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Function, pin-out and drive compatible with FCT and F logic
- Reduced VOH (typically = 3.3V) version of equivalent FCT functions
- Edge-rate control circuitry for significantly improved noise characteristics
- IOFF Supports partial-power-down mode operation
- Matched rise and fall times
- Fully compatible with TTL input and output logic levels
- 64mA Output sink current
- 32mA Output source current
- Green product and no Sb/Br
Области применения
Промышленное, Автоматизация и Управление Процессами, Обработка Сигнала
Базовый Номер / Семейство Логики:
74FCT245
Базовый Номер Микросхемы Логики:
74245
Количество Выводов:
20вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
5.25В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
4.75В
Семейство Логической Микросхемы:
74FCT
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микросхемы Логики:
SOIC
Тип Логического Устройства:
Приемопередатчик, Неинвертирующий
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
