IPW65R045C7FKSA1 (INFINEON)
МОП-транзистор, N Канал, 46 А, 650 В, 0.04 Ом, 10 В, 3.5 В
The IPW65R045C7 is a 650V N-channel CoolMOS™ Power MOSFET providing the world's lowest RDS (on) with low switching losses and efficiency improvements over the full load range. The new CoolMOS™ C7 series offers a ~50% reduction in turn-off losses (Eoss) compared to the CoolMOS™ CP, offering a GaN-like level of performance in PFC, TTF and other hard-switching topologies. The CoolMOS™ MOSFET offers a significant reduction of conduction, switching and driving losses and enable high power density and efficiency for superior power conversion systems. The latest state-of-the-art generation of high voltage power MOSFETs makes AC-DC power supplies more efficient, more compact, lighter and cooler than ever before.
- Reduced energy stored in output capacitance (Eoss)
- Lower gate charge
- Space-saving through reduction of parts
- Improved safety margin
- Lowest conduction losses
- Low switching losses
- Better light load efficiency
- Increasing power density
Области применения
Связь и Сеть, Компьютеры и Периферия, Альтернативаня Энергия, Управление Питанием
Количество Выводов:
3вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
150°C
Напряжение Измерения Rds(on):
10В
Напряжение Истока-стока Vds:
650В
Непрерывный Ток Стока:
46А
Полярность Транзистора:
N Канал
Пороговое Напряжение Vgs:
3.5В
Рассеиваемая Мощность:
227Вт
Сопротивление во Включенном Состоянии Rds(on):
0.04Ом
Стандарты Автомобильной Промышленности:
-

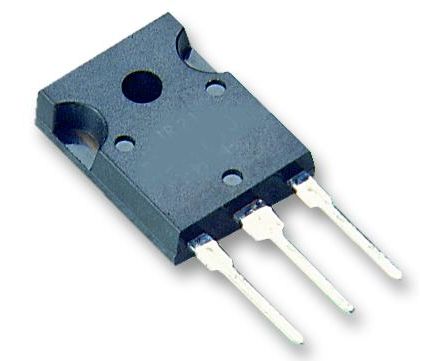

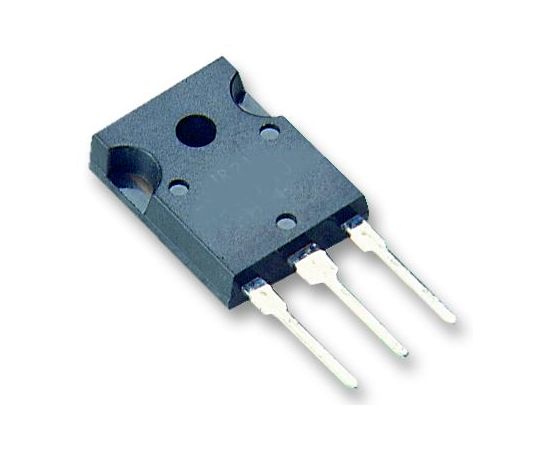

Стиль Корпуса Транзистора:
TO-247
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
