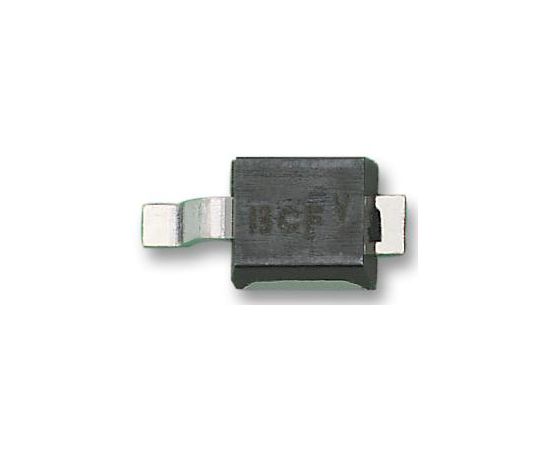

MBRM140T3G (ON SEMICONDUCTOR)
Выпрямитель Шоттки, универсальный, 40 В, 1 А, Одиночный, DO-216AA, 2 вывод(-ов), 550 мВ
The MBRM140T3G is a surface mount Schottky Power Rectifier with an epoxy molded case. The Schottky POWERMITE® employs the Schottky barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop-reverse current tradeoff. With its unique heatsink design, the POWERMITE® has the same thermal performance as the SMA while being 50% smaller in footprint area and delivering one of the lowest height profiles, <1.1mm in the industry.
- Low forward voltage provides higher efficiency and extends battery life
- Low thermal resistance with direct thermal path of die on exposed cathode heat sink
Области применения
Переносные Устройства, Управление Питанием, Потребительская Электроника, Компьютеры и Периферия
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество Выводов:
2вывод(-ов)
Конфигурация Диода:
Одиночный
Линейка Продукции:
MBRM1 Series
Максимальная Рабочая Температура:
125°C
Максимальное Значение Напряжения Vrrm:
40В
Максимальное Прямое Напряжение:
550мВ
Максимальный Импульсный Прямой Ток Ifsm:
50А
Средний Прямой Ток:
1А
Стандарты Автомобильной Промышленности:
AEC-Q101
Стиль Корпуса Диода:
DO-216AA
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
Lead (27-Jun-2018)
RoHS статус:
Да
