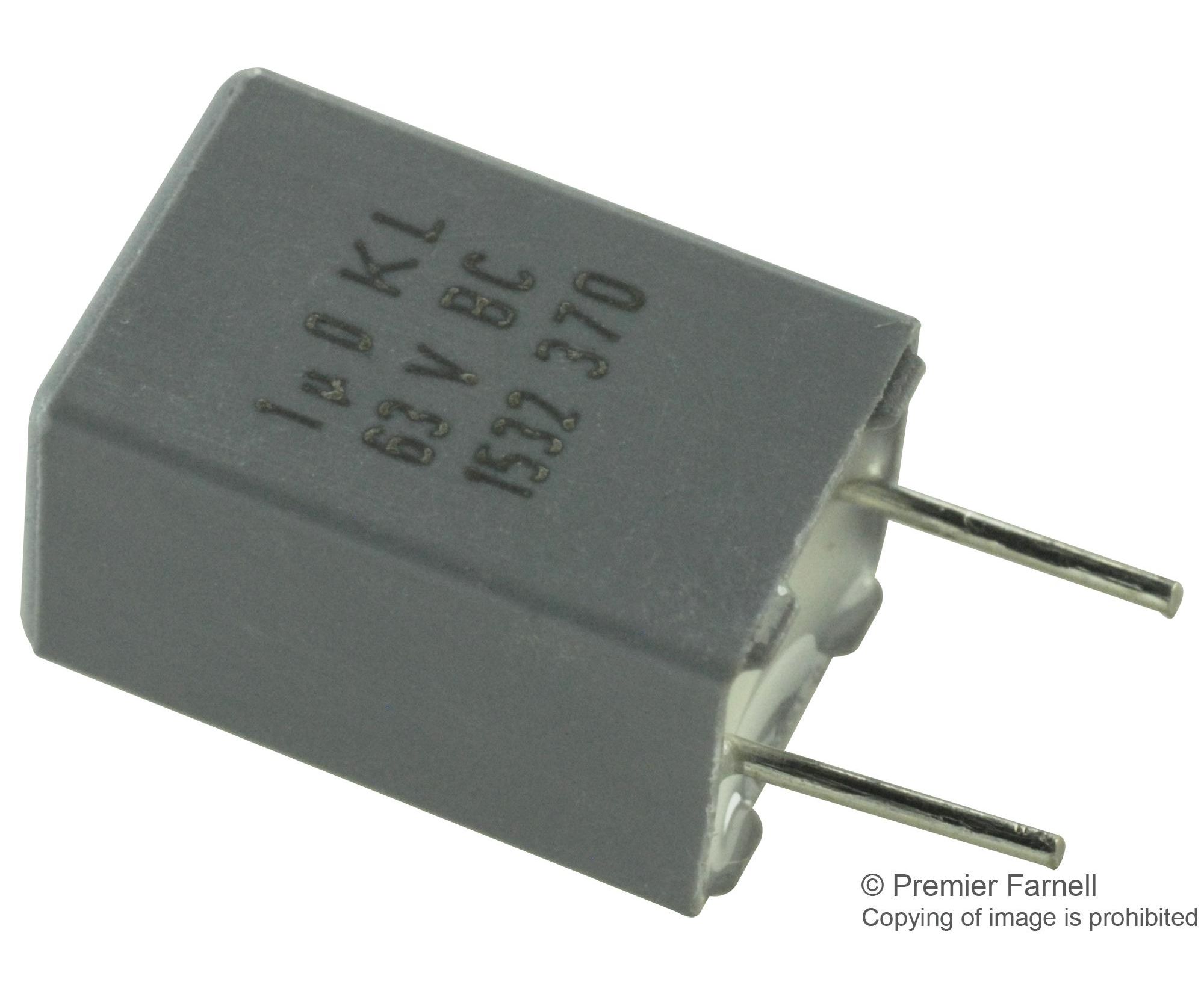

BFC237011105 (VISHAY)
DC Пленочный Конденсатор, 1 мкФ, 63 В, PET (Полиэфир), ± 10%, Серия MKT370
The BFC237011105 is a MKT radial potted metalized DC Film Capacitor with flame-retardant plastic case and epoxy resin (UL-class 94V-0), polyester film dielectric and tinned wire leads. Suitable for blocking and coupling, bypass and energy reservoir.
- Grade 1 (long life) performance grade
- Rated DC voltage of 50V, 63V, 250V, 400V, 630V
- Rated AC voltage of 32V, 40V, 63V, 160V, 220V
- ±5% and ±10% tolerance
- Compliant to IEC 60384-2 standard
- Endurance is 2000h at 85°C
- Flame retardant plastic case and epoxy resin coated with tinned wire
- Maximum operating temperature is 85°C
Области применения
Авто, Промышленное, Управление Питанием, Потребительская Электроника, Переносные Устройства
