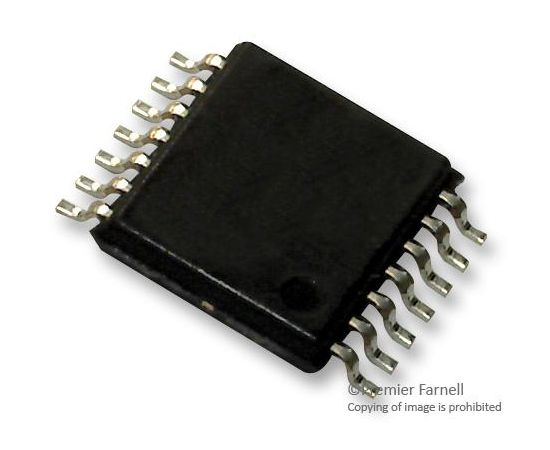

LM3429Q1MH/NOPB (TEXAS INSTRUMENTS)

The LM3429Q1MH/NOPB is a versatile high voltage N-channel MOSFET Controller for constant current LED drivers. It can be easily configured in buck, boost, buck-boost and SEPIC topologies. This flexibility, along with an input voltage rating of 75V, makes the LM3429 ideal for illuminating LEDs in a very diverse, large family of applications. Adjustable high-side current sense voltage allows for tight regulation of the LED current with the highest efficiency possible. It uses predictive off-time (PRO) control, which is a combination of peak current-mode control and a predictive off-timer. This method of control eases the design of loop compensation while providing inherent input voltage feed-forward compensation. It includes a high-voltage start-up regulator that operates over a wide input range of 4.5 to 75V. The internal PWM controller is designed for adjustable switching frequencies of up to 2MHz, thus enabling compact solutions.
