59140-1-S-02-A (HAMLIN)
Геркон, серия 59140, монтаж на фланец, 11.5мм, SPST-NO, 10Вт, 200В DC, 0.5А, 12 до 18AT

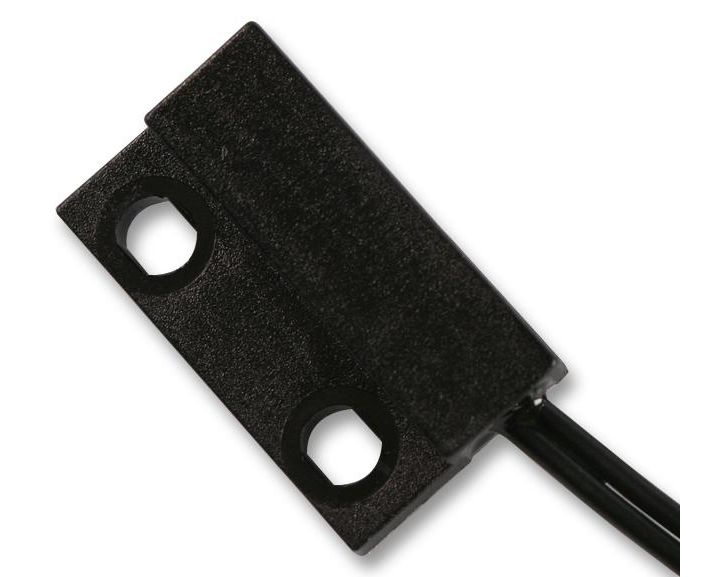

The 59140-1-S-02-A is a 11.5mm flange-mount Reed Sensor with tinned lead terminals. This sensor is a miniature reed sensor occupying only 3.22cm? board space with a choice of normally open contacts. It's case design enables screw or adhesive mounting and the wires exit from top right hand side. Operates through non-ferrous materials such as wood, plastic or aluminium. Excellent for switching microcontroller logic level loads. Suitable for position and limit sensing, linear actuators, security system switch and door switch applications.
- Magnetically operated
- No standby power requirement
- 11.81" Cable length
- 0.453" Active distance
Области применения
Промышленное, Считывание и Контрольно-измерительная Аппаратура, Охрана
Документация
Technical Data Sheet ENЛинейка Продукции:
59140 Series
Максимальная Рабочая Температура:
105°C
Максимальный Диапазон Измерений:
11.5мм
Минимальная Рабочая Температура:
-40°C
Монтаж Датчика:
-
Ток Питания:
500мА
RoHS статус:
Да
