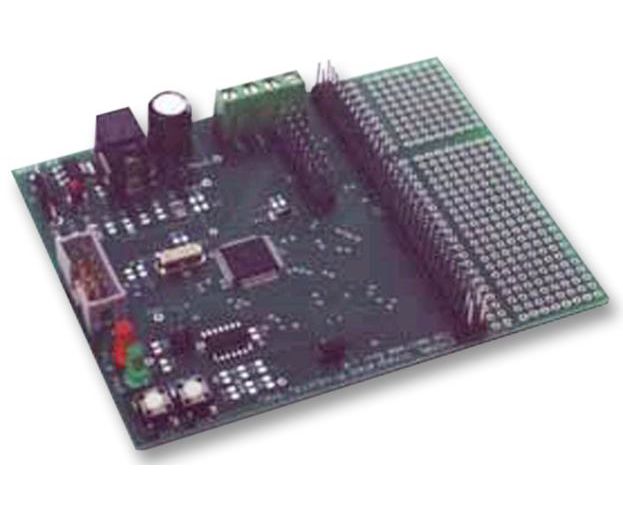

C8051F005-TB (SILICON LABS)
Макетная плата, микроконтроллер C8051F005, 32 портов I/O, J-TAG разъем, адаптер отладки
C8051F005-TB is a prototype board designed to develop applications with C8051F005 MCU. This 8bit MCU device are highly integrated mixed signal MCUs featuring a true 12bit multi channel ADC and two separate 12bit DACs, two voltage comparators, a voltage reference and an 8051 compatible microcontroller core with 32KB of FLASH memory. There are also I2C/SMBus, UART, and SPI serial interfaces implemented in hardware as well as a Programmable Counter/Timer Array with five capture/compare modules. As well as four general purpose 16bit timers and 4byte wide general purpose digital Port I/O. The F005 have 2304bytes of RAM and execute up to 25MIPS. With an on board VDD monitor, WDT, and clock oscillator, the MCUs are truly stand alone System on a Chip solutions. This MCU effectively configures and manages the analog and digital peripherals. The FLASH memory can be reprogrammed even in circuit, providing non volatile data storage, and also allowing field upgrades of the 8051 firmware.
- Pipelined instruction architecture; executes 70% of Instructions in 1 or 2 system clocks
- Expanded interrupt handler, up to 21 interrupt sources
- 32 port I/O, all are 5V tolerant
- On chip emulation circuitry facilitates full speed, non intrusive, in circuit emulation
- Supports breakpoints, single stepping, watch point, inspect/modify memory, and registers
- Superior performance to emulation systems using ICE chips, target pods, and sockets
- Fully compliant with IEEE 1149.1 specification
Области применения
Промышленное, Считывание и Контрольно-измерительная Аппаратура, Беспроводное, Связь и Сеть, Тестирование и Измерение, Волоконная Оптика
Архитектура Ядра:
8051
Количество Бит:
8бит
Линейка Продукции:
-
Название Семейства Чипа:
C8051F00x
Номер Ядра Чипа:
C8051F005
Подархитектура Ядра:
8051
Производитель Чипа:
Silicon Laboratories
Содержимое Комплекта:
Плата
SVHC (Особо Опасные Вещества):
To Be Advised
