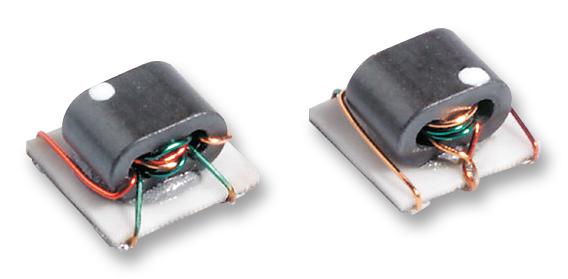

WBC1-1TLC (COILCRAFT)
Широкополосный трансформатор, 0.25 - 750МГц, 1:1, 250мА, поверхностный монтаж
The WBC1-1TLC is a 250mA 0.25 to 750MHz mini Wideband Transformer with ferrite core and tapped or untapped configuration. This surface mount transformer is rated with 250mA maximum current, 300Vrms inter-winding isolation and 1/4 watt RF input power. The inductance measured at 100kHz, 0.1V, 0Adc on an Agilent/HP 4192 or equivalent. DCR measured at 25°C on a micro-ohmmeter.
- MSL-I Moisture sensitivity level
- -40 to +85°C Ambient temperature range
Области применения
Промышленное
Индуктивность:
-
Линейка Продукции:
-
Соответствует Фталатам RoHS:
Да
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Y-Ex
