20-313145 (VERO)
Контрольные точки платы, Черный, Монтаж в Сквозное Отверстие, 1.32 мм, Фосфористая Бронза

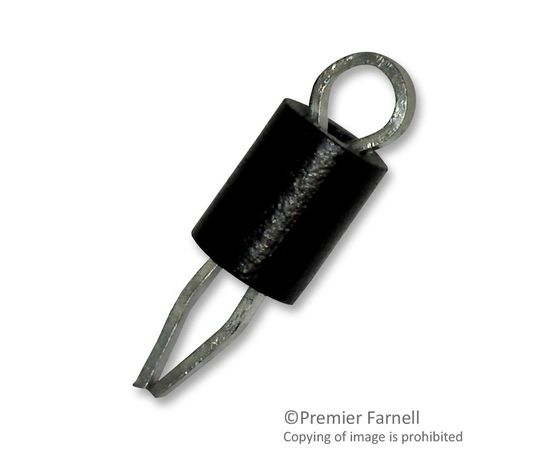

The 20-313145 is a black PCB test-point Loop Terminal Assembly with tin-plated bronze contacts for 1.32mm hole size. This PCB test point is used for attaching leads for test scopes and probes with scintered glass insulator. The sintered glass bead has a recommended maximum working temperature of 475°C. This exceeds all current standard temperature profile requirements.
- Compliant pin design allows terminal to be inserted without damaging hole plating
- Terminal will remain in place even when the board is inverted for soldering
- Borosilicate sintered glass bead
- Phosphor bronze (BS2873) wire loop with (3 to 5µ) electroplated bright tin plating
- Pins for board < 2.4
Области применения
Тестирование и Измерение
