23.3200-22 (STAUBLI)
Испытательный разъем Banana, 4мм, Гнездо, Монтаж на Печатную Плату, 24 А, 1 кВ

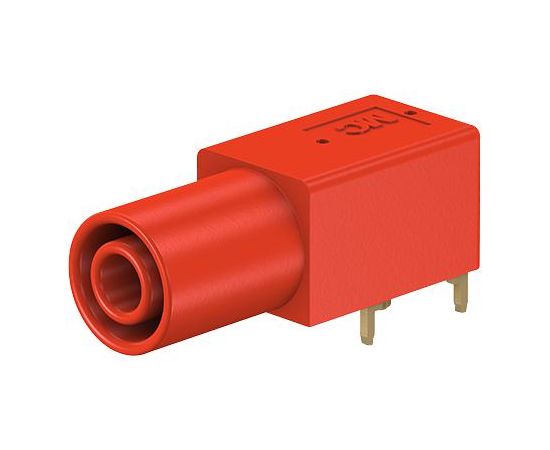

The SLB4-I/90 series from Multi-Contact are 4mm rigid right angled binding post sockets. These right angled socket accept spring loaded 4mm diameter plugs with rigid insulating sleeve. The SLB4-I/90 with 2mm diameter round pin and contacts are used for mounting on printed circuit boards.
- CAT III measurement category
- Rated voltage of 1000V
- Rated current of 24A
- Polyamide (PA) insulation
- Operating temperature range -40°C to 80°C
- Gold plated machined brass contacts
- Available in variety of colours
Области применения
Тестирование и Измерение
