7101SYZQE (C & K COMPONENTS)

Рычажный переключатель, Вкл.-Вкл., SPDT, Без Подсветки, Серия 7000, 5 А, Панель

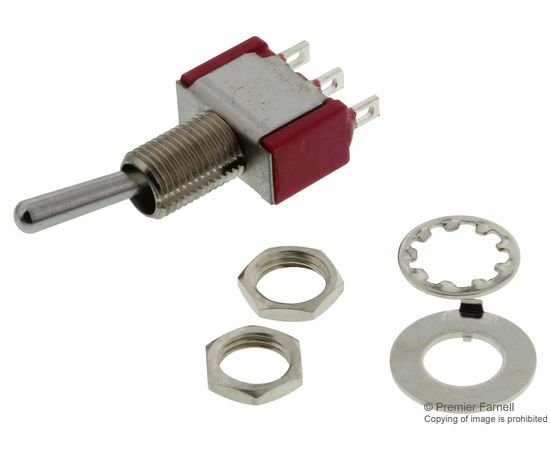

The 7101SYZQE is a single-pole double-throw (SPDT) Miniature Toggle Switch with solder lug termination, 0.42-inch chrome plated brass actuator, 0.35-inch high keyway bushing and ON-NONE-ON function. The 7000 series switch has silver plated coin silver contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.

1000Vrms at sea level Minimum dielectric strength
-30 to 65°C Operating temperature range
Solderability as per MIL-STD-202F method 208D or EIA RS-186E method 9 (1 hour steam aging)
