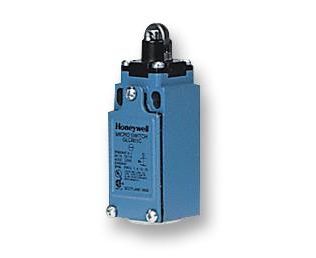

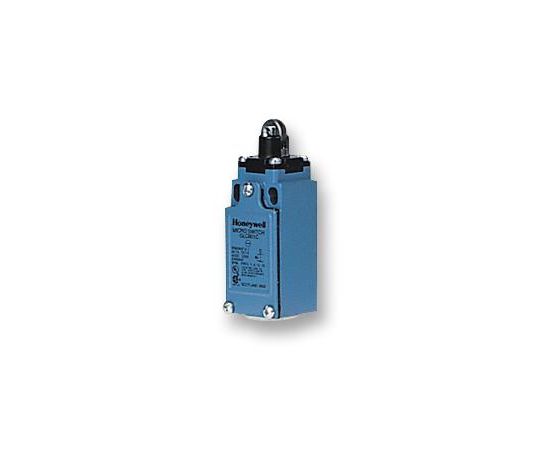

GLDB01C (HONEYWELL)
Концевой Выключатель, Верхний Роликовый Плунжер, 1NO / 1NC, 10 А, 600 В, 16 Н
The GLDB01C is a 1NO/1NC SPDT snap-action Global Limit Switch with top roller plunger actuator. This GLS series MICRO SWITCH™ durable and reliable limit switch is suitable for transportation equipment and other applications requiring an environmentally sealed (IP and NEMA) switch. The compact housing is often ideal for equipment where space is at a premium. The direct-opening, normally closed contacts are designed for safety-related applications. It is suitable for machine tools, material handling equipment, textile machinery, construction machinery and equipment.
- Plastic miniature body for indoor and outdoor applications
- Heads can be positioned at 90° increments for design flexibility
- Large existing install base and channel allows for quick delivery worldwide
- Silver contacts for power switching
- Normally closed contacts are positive opening
- Easy to install
- Sealed to IP66 and NEMA/UL 1, 4, 12 and 13
- Meets EN50047 mounting standards and EN/IEC electrical standards for world-wide use
- PG 13.5 Conduit
Области применения
Авто, Коммерческое, Промышленное, Техническое Обслуживание и Ремонт
Предупреждения
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
Документация
Technical Data Sheet EN Drawing ENАктивационный Элемент Концевого Выключателя:
Верхний Роликовый Плунжер
Конфигурация Контакта:
1NO / 1NC
Линейка Продукции:
-
Максимальная Рабочая Сила:
16Н
Максимальное Напряжение Контакта AC:
600В
Максимальное Напряжение Контакта DC:
250В
Максимальный Ток Контакта AC:
10А
Максимальный Ток Контакта DC:
10А
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
