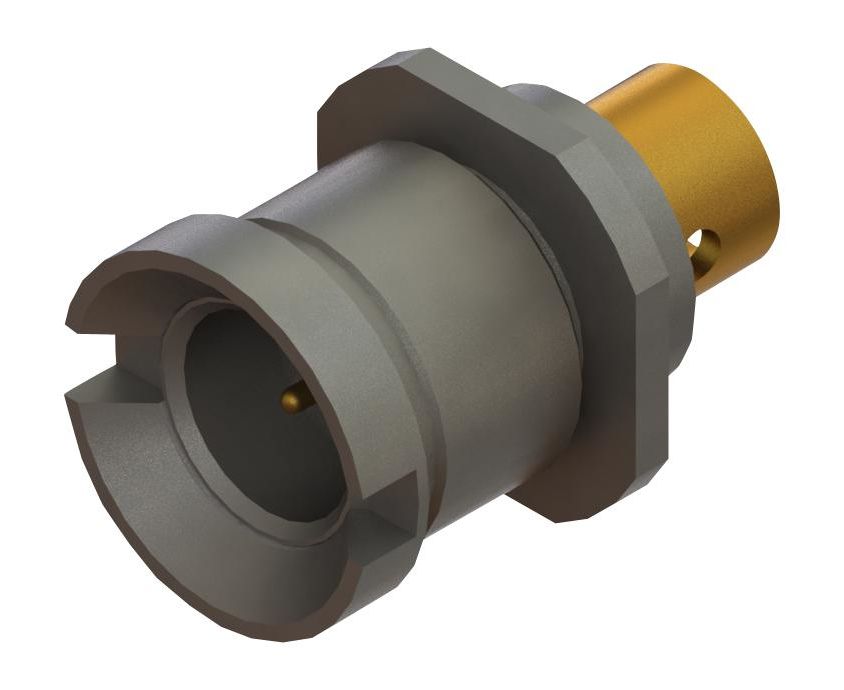

SF1211-6061 (AMPHENOL SV MICROWAVE)
Разъем РЧ / Коаксиальный, SMP Коаксиальный, Прямой Штекер с Гайкой, 50 Ом, 0.085" Полужесткий
The SF1211-6061 from SV Microwave - Amphenol is a SMP FD male bulkhead connector for 0.085inch cable. The SMP connector was developed to meet an industry need for a smaller high frequency compact design that incorporated ease of use and functionality. The SMP bullet is the heart of this unique design. SMP connectors that conform to DSCC 94007, 94008 and MIL-STD-348. Typical applications include aerospace, military, broadband, instrumentation, routers, telecommunications and satellite communication equipment (SATCOM).
- Blindmate / push on design (RFfortless®)
- RF performance DC to 26.5GHz
- Designed to accommodate both radial and axial misalignment
- Cable connector designs for both flexible and semi-rigid cables
- Bullet design
- Impedance is 50 ohm, dielectric withstanding voltage is 500VRMS
- Stainless steel body and bulkhead nut
- Beryllium copper with gold finish contact
- PTFE insulator
- Temperature range from -65°C to +165°C
Области применения
Промышленное
Импеданс:
50Ом
Коаксиальный Концевая Заделка:
-
Линейка Продукции:
-
Максимальная Частота:
26.5ГГц
Материал Контакта:
Сплав Бериллиевой Меди
Монтаж Разъема:
Монтаж на Кабель
Покрытие Контакта:
Контакты с Покрытием из Золота
Стиль Корпуса Разъема:
Прямой Штекер с Гайкой
Тип Соединителя:
SMP Коаксиальный
Типы Коаксиального Кабеля:
0.085" Полужесткий
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Y-Ex
