N2520-6002RB (3M)
Разъем типа провод-плата, 2.54 мм, 20 контакт(-ов), Штыревой Разъем, Серия 2500, Сквозное Отверстие

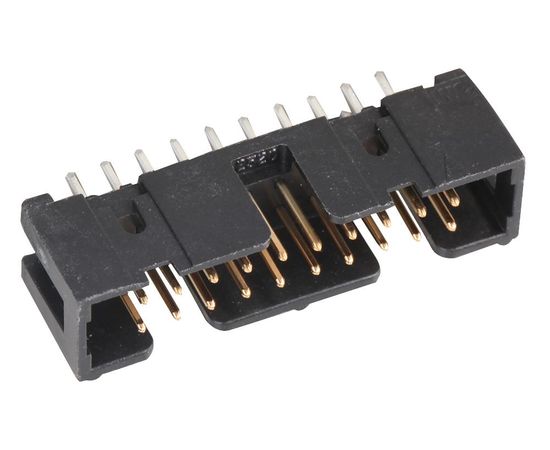

The N2520-6002RB is a 20-way 0.100 x 0.100-inch 4-wall Straight Header for 0.062-inch thick board tail, with gold-plated copper alloy contacts and through hole termination. This 2500 series low profile header is a glass filled polyester (PCT) insulated, center slot polarization prevents mis-insertions and reduces insertion time, suitable for reflow soldering using paste in hole techniques.
- Black colour high temperature glass filled polyester PCT insulator
- Copper alloy with gold plating contacts
- Temperature rating from -55°C to 105°C
- Withstanding Voltage: 1000V
- Current Rating:
- 5A, 1 Contact Powered, 3A, 6 Contacts Powered, 1.75A, All Contacts Powered
Области применения
Промышленное
Количество Контактов:
20контакт(-ов)
Количество Рядов:
2ряд(-ов)
Линейка Продукции:
Серия 2500
Материал Контакта:
Медный Сплав
Покрытие Контакта:
Контакты с Покрытием из Золота
Тип Оконцовки Контакта:
Сквозное Отверстие
Тип Электрического Разъема:
Штыревой Разъем
Шаг Контактов:
2.54мм
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
