89140-0101HA (3M)
Разъем типа провод-плата, штырь и зажим, 2.54 мм, 40 контакт(-ов), Гнездо, Серия 8914, IDC / IDT

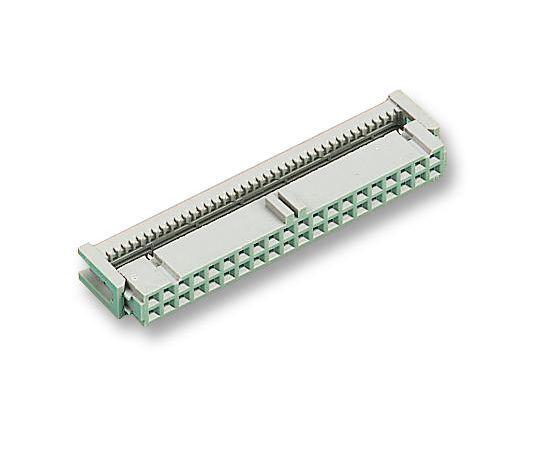

The 89140-0101HA is a 40-way 0.100 x 0.100-inch Preassembled Wiremount Socket for 0.050-inch pitch cable, 0.38µm gold with 0.76µm nickel plating, gold-plated phosphor bronze contacts and IDC/IDT termination. This 891 series socket is glass filled polyester (PBT) insulated, preassembled, terminates faster than two-piece sockets. Double-recessed cover for cable terminating from either side virtually eliminating the need for single-recessed cover connectors, military polarization with centerbump and no strain relief.
- Grey colour
- UL94V-0 Flammability rating
- 1A Current rating
- >1 x 10?R at 500VDC Insulation resistance
- -55 to 105°C Temperature rating
Области применения
Промышленное
