3611 02 K01 (LUMBERG)
Разъем типа провод-плата, 5 мм, 2 контакт(-ов), Гнездо, Серия RAST 5, Винт, 1 ряд(-ов)

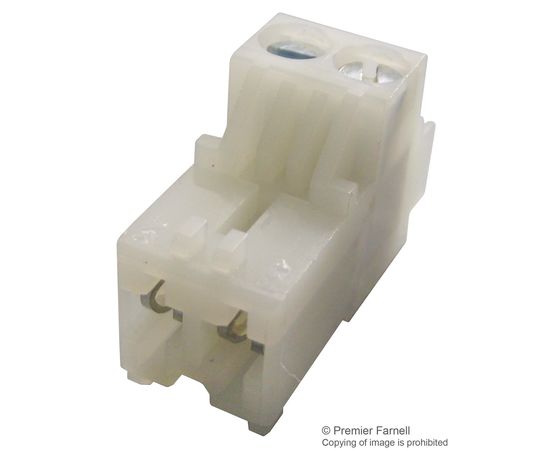

The 3611 02 K01 is a 2-pole Wire-to-board Connector, RAST 5 series, indirect mating with screw terminal. Lift clamp with protection against misplacing, interior locking and consecutive placement without loss of pitch. UL94V-2 rated polyamide insulating body, tin-plated contacts. Suitable for us with 3618, 361899, 361899-1, 361899-2, 361899-3, 3618-1, 3618-2, 3618-3, 3641, 364197, 3642, 3643, 3644, 3645, 3647, 3648, 3649, 3671, 367199, 3672, 367299, 3673, 367399, 3674, 367499, 3676, 3677, 3678, 3679, 3680, 3683 tab headers.
- 4.0mm? Solid wire
- 2.5mm? Stranded wire
- 2.5mm? Stranded wire with ferrule
- 10A Current rating
- 250VAC Voltage rating
- >=2.6mm Creepage distance
- >=2.6mm Clearance
- >10GR Insulation resistance
Области применения
Промышленное, Автоматизация Зданий
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество Контактов:
2контакт(-ов)
Количество Рядов:
1ряд(-ов)
Линейка Продукции:
Серия RAST 5
Материал Контакта:
Медь, Олово
Покрытие Контакта:
Контакты с Покрытием из Олова
Тип Оконцовки Контакта:
Винт
Тип Электрического Разъема:
Гнездо
Шаг Контактов:
5мм
SVHC (Особо Опасные Вещества):
Lead (27-Jun-2018)
RoHS статус:
Да
