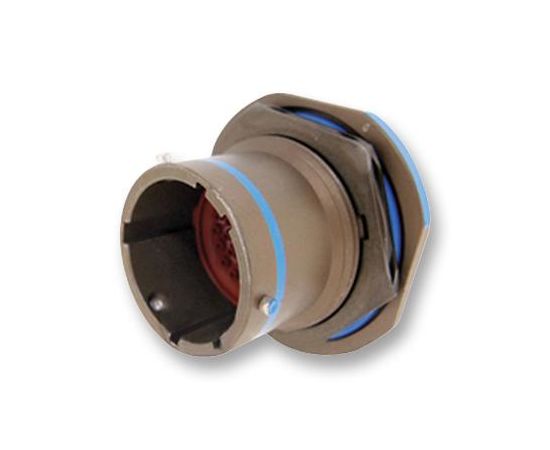

MS27468T25B61PA (DEUTSCH)
Круглый разъем, MIL-DTL-38999 Серия I, Гнездо с Зажимной Гайкой, 61 контакт(-ов), Обжимной Контакт
The MS27468T25B61PA from Deutsch is MIL-DTL-38999 Series I jam nut receptacle with 61 contacts. MIL-DTL-38999 Series I connectors are available in a wide range of shell materials and finishes with 48, 500 and 1000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It has an improved sealing around each contact to prevent electrolytic erosion. These connectors are available in 9 shell size from 9 to 25 and are designed to withstand extreme shock, exposure and vibration.
- High reliability, moisture and corrosion resistant
- Outstanding EMI, RFI shielding protection (100MHz to 10GHz at attenuation of 50dB)
- 500 mating cycles, IP67 environmental protection
- Operates at extreme temperature range of -65°C to +200°C
- Minimum insulation resistance is 5000Mohm
- Scoop proof to eliminate the possibility of contact damage
- Quick mating, three-point bayonet coupling and 5 key/keyway mating
- Self locking connector system, breakaway lanyard release style
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Copper alloy crimp pin contacts with gold plating
Области применения
Оборона, Военная и Авиационно-космическое, Промышленное
Военная Спецификация:
MIL-DTL-38999 Серия I
Вращение Вставки:
A
Класс Обслуживания:
Защита от Влияния Окружающей Среды
Количество Контактов:
61контакт(-ов)
Контактная Схема:
25-61
Линейка Продукции:
MIL-DTL-38999 Series I
Материал Контакта:
Медный Сплав
Материал Корпуса Соединителя:
Корпус из Сплава Алюминия
Покрытие Контакта:
Золото
Покрытие Корпуса Разъема:
Зеленовато-желтый Хромат поверх Кадмия
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Корпуса Круглого Разъема:
Гнездо с Зажимной Гайкой
Стиль Соединения:
Байонетный
Тип Круглого Контакта:
Обжимной Контакт
SVHC (Особо Опасные Вещества):
Cadmium (27-Jun-2018)
RoHS статус:
Нет
