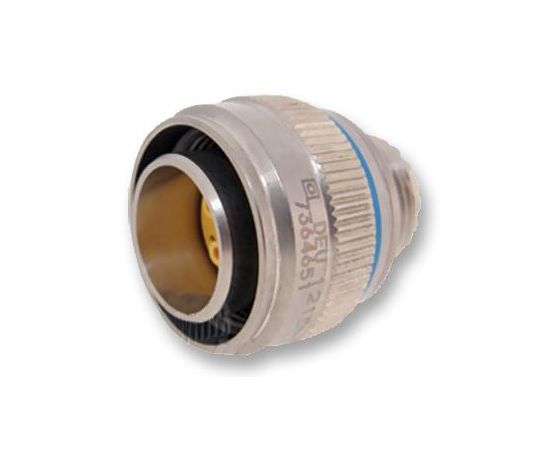

EN2997K60898A6 (DEUTSCH)
Круглый разъем, EN2997 Series, Прямой Штекер, 3 контакт(-ов)
The EN2997K60898A6 from Deutsch is EN2997 series, MIL-DTL-83723 series III equivalent straight plug with 3 contacts. These high reliability EN2997 series connectors are designed for harsh environment requirements, engines and boosters. EN2997 series are enhanced over standard MIL-DTL-83723 mil spec connectors and qualified per EN2997 standards. These connectors have anti-rotation, reduced elastomer barriers for use with newer and older generation wires and shell to shell metal bottoming and are designed to withstand extreme shock, exposure and vibration.
- Five keyway with optional keyway orientation
- Threaded coupling with self locking
- Anti-rotation system on 360° by tightening
- Thermo setting, hermetic sintered glass insulator and silicone seal
- Operates at extreme temperature of 200°C
- 500 mating cycles
- Salt spray exposure of 500hour per EN2591-307 standard
- Insulation resistance is greater than 5000Mohm at 260°C and 65% R. H
- Stainless steel body material with passivated finish
- Copper alloy crimp pin contacts with gold plating
Области применения
Промышленное, Коммерческое
Вращение Вставки:
6
Класс Обслуживания:
Устойчивый к Коррозии
Количество Контактов:
3контакт(-ов)
Контактная Схема:
8-98
Линейка Продукции:
EN2997 Series
Материал Контакта:
Медный Сплав
Материал Корпуса Соединителя:
Корпус из Нержавеющей Стали
Покрытие Контакта:
Золото
Покрытие Корпуса Разъема:
Пассивированный
Стиль Корпуса Круглого Разъема:
Прямой Штекер
Стиль Соединения:
С Резьбой
Тип Круглого Контакта:
Обжимной Контакт - Контакты в Комплект Не Входят
Эквивалентная Военная Спецификация:
MIL-DTL-83723 Series III
SVHC (Особо Опасные Вещества):
To Be Advised
RoHS статус:
Да
