734-262 (WAGO)
Клеммная Колодка, Штыревой Разъем, 3.81 мм, 2 вывод(-ов), 10 А, 300 В

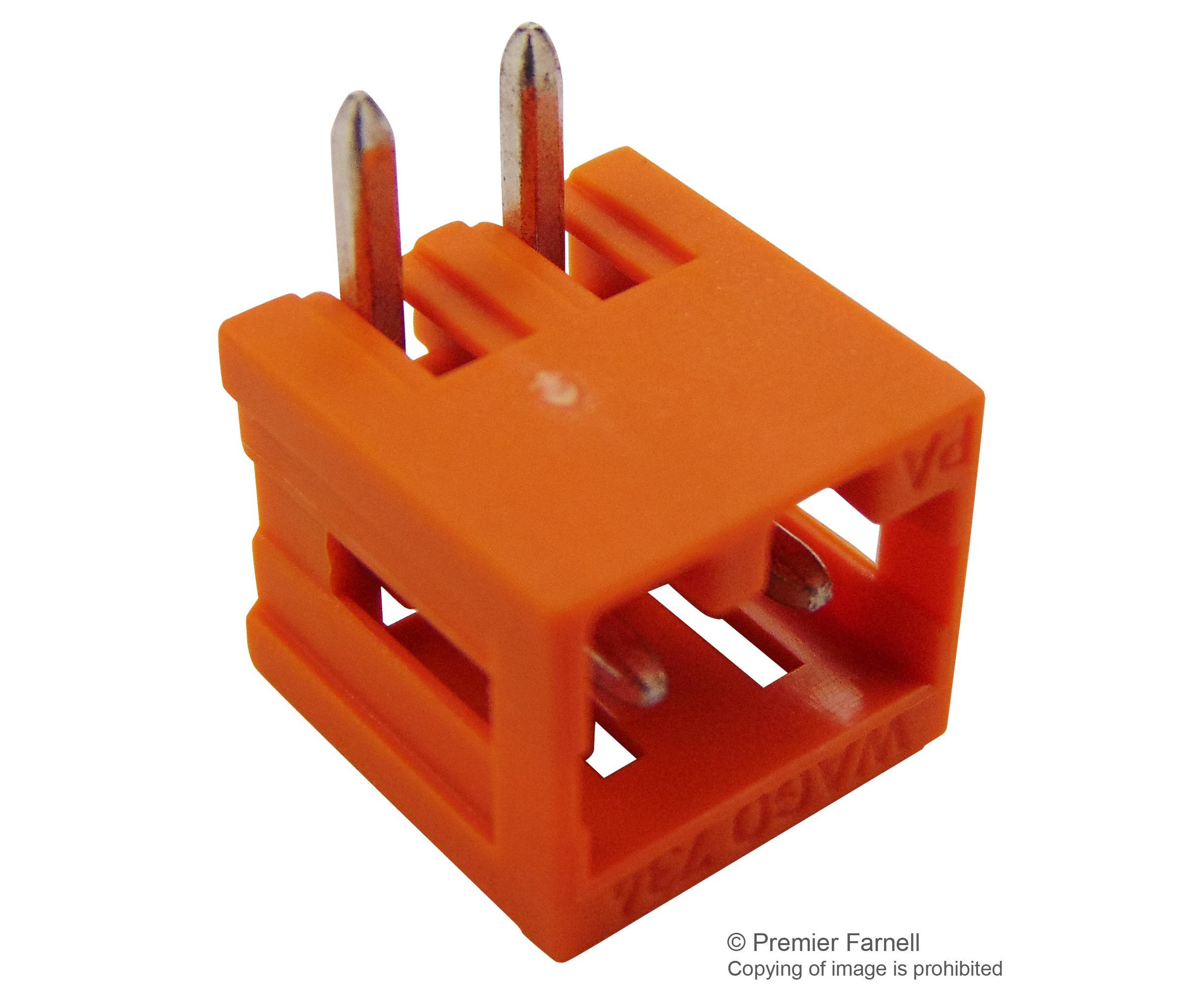

The 734-262 from Wago is an orange colour, 2-pole male header for PCBs with 3.81mm (0.15inch) pin spacing and 1mm x 1mm angled solder pin. It is 100% protected against mismating with closed end, only mating halves with the same pole number can be connected together. The connector has tin plated electrolytic copper (Ecu) contacts and polyamide 66 (PA 66) insulation. It has 0.011MJ fire load, 0.624g weight and 9.71mm (0.382inch) x 12.3mm (0.484inch) x 10.3mm (0.406inch) dimension (W x H x D). Coding options are available. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 (Underwriters Laboratories Inc) and LR approvals.
- 1mm x 1mm pin cross section allows nominal current up to 10A
- Horizontal PCB mounting
- Solder pin length of 3.8mm
- Ratings per IEC/EN 60664-1 standards and flammability class per UL94 V0
- Robust housing, shock and vibration resistant
- Rated impulse voltage of 2.5KV (III/3), 2.5KV (III/2) and 2.5KV (II/2)
- Rated voltage of 160V (III/2), 320V (II /2) and rated current of 10A
- Limit temperature range from -60°C to 100°C
Области применения
Промышленное
Количество Положений:
2вывод(-ов)
Линейка Продукции:
MCS MINI 734 Series
Номинальное Напряжение:
300В
Номинальный Ток:
10А
Положение Блока:
Сквозное Отверстие под Прямым Углом
Тип Электрического Разъема:
Штыревой Разъем
Шаг Контактов:
3.81мм
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
