09 14 016 0313 (HARTING)
Аксессуар разъема, Han Modular Frame, 4 Han модульными 16B модулями, Han-Modular Series

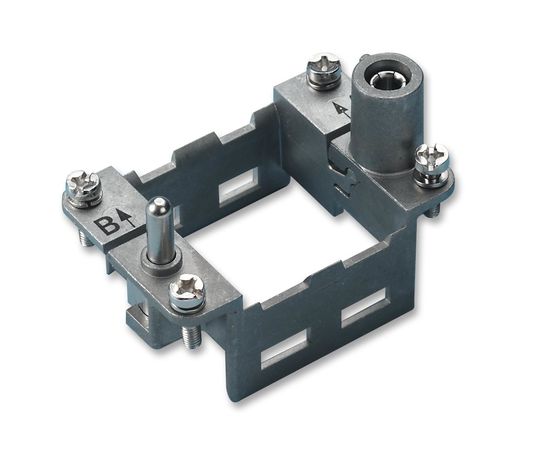

The 09 14 016 0313 is a Hinged Frame 16 B for 4 modules (a..d), female insert with zinc die cast housing. The Han-Modular® series is a heavy duty connector system that provides users with a very high degree of interconnect design and manufacturing flexibility. In addition to connections of electrical power and signals it is also possible to make pluggable connections for both optical and gaseous mediums with the Han-Modular® system.
- 500 Mating cycles
- UL94V-0 Flammability rating
Области применения
Промышленное
Для Использования с:
4 Han модульными 16B модулями
Линейка Продукции:
Han-Modular Series
Тип Аксессуара:
Han Modular Frame
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
