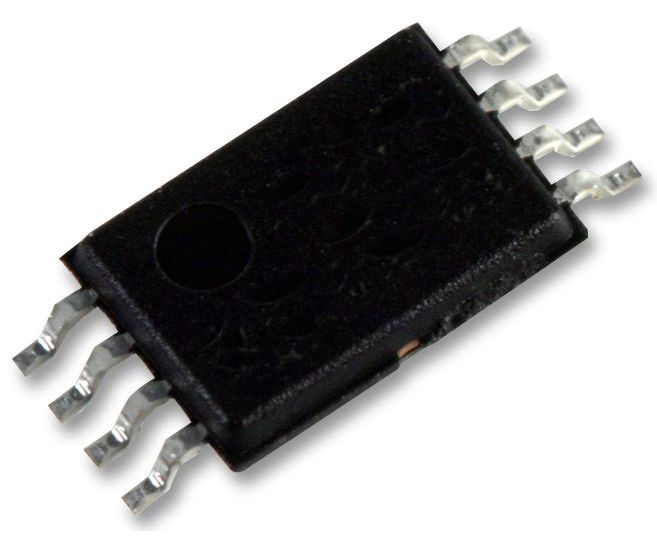

INA240A1PWR (TEXAS INSTRUMENTS)
Токочувствительный усилитель, нулевой дрейф, 1 Усилитель, 90 мкА, TSSOP, 8 вывод(-ов), -40 °C
The INA240A1PWR from Texas Instruments is a high and low side, bidirectional, zero-drift, current sense amplifier with enhanced PWM rejection in 8 pin TSSOP package. It can sense drops across shunt resistors over a wide common mode voltage range from -4V to 80V, independent of the supply voltage. The negative common mode voltage allows the device to operate below ground, accommodating the flyback period of typical solenoid applications. Enhanced PWM rejection provides high levels of suppression for large common mode transients (?V/?t) in systems that use pulse width modulation (PWM) signals (such as motor drives and solenoid control systems). This feature allows for accurate current measurements without large transients and associated recovery ripple on the output voltage. It is used in pressure regulators and telecom equipment.
- Operates from a single 2.7V to 5.5V
- Enhanced PWM rejection
- Excellent CMRR, -132dB DC CMRR, -93dB AC CMRR at 50KHz
- Accuracy of 0.20% (max) gain error, 2.5ppm/°C (max) gain drift
- Offset voltage of ±25µV (max), offset drift of 250nV/°C (max)
- 20V/V gains
- Quiescent current of 2.4mA (max)
- Operating temperature range from -40°C to 125°C
Области применения
Считывание и Контрольно-измерительная Аппаратура, Обработка Сигнала, Привод Двигателя и Управление, Управление Питанием
Предупреждения
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Входной Ток Смещения:
90мкА
Количество Выводов:
8вывод(-ов)
Количество Усилителей:
1 Усилитель
Коэффициент Подавления Синфазного Сигнала:
132дБ
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
2.7В
Напряжение Входного Смещения:
5мкВ
Полоса Пропускания:
400кГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
TSSOP
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
