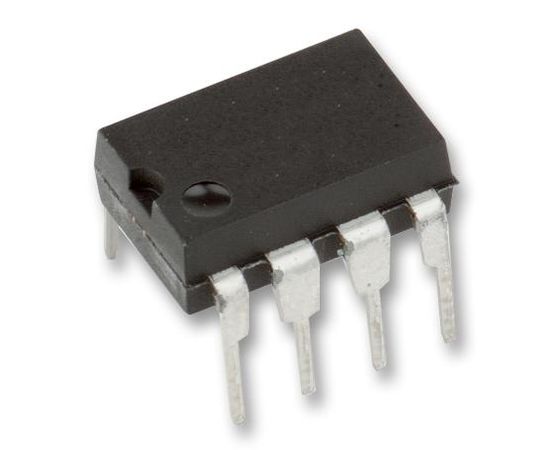

OPA627APG4 (TEXAS INSTRUMENTS)
Операционный усилитель, одиночный, 1 Усилитель, 16 МГц, 55 В/мкс, ± 4.5В до ± 18В, DIP
The OPA627APG4 is a precision high-speed Difet® Operational Amplifier provides a new level of performance in a precision FET operational amplifier. When compared to the popular OPA111 operational amplifier, the OPA6x7 has lower noise, lower offset voltage and higher speed. The OPA6x7 is useful in a broad range of precision and high speed analogue circuitry. The OPA6x7 is fabricated on a high-speed, dielectrically-isolated complementary NPN/PNP process. It operates over a wide range of power supply voltage of ±4.5 to ±18V. Laser-trimmed Difet input circuitry provides high accuracy and low-noise performance comparable with the best bipolar-input operational amplifiers. High frequency complementary transistors allow increased circuit bandwidth, attaining dynamic performance not possible with previous precision FET operational amplifiers. The OPA627 is unity-gain stable. The OPA637 is stable in gains equal to or greater than five.
- 4.5nV/vHz at 10kHz Very low noise
- 550ns to 0.01% Fast setting time
- 100µV Maximum low VOS
- 0.8µV/°C Maximum low drift
- 5pA Maximum low IB
- Unity-gain stable
Области применения
Считывание и Контрольно-измерительная Аппаратура, Визуализация, Видео и Зрение, Тестирование и Измерение
Предупреждения
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Диапазон Напряжения Питания:
± 4.5В до ± 18В
Количество Выводов:
8вывод(-ов)
Количество Усилителей:
1 Усилитель
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Минимальная Рабочая Температура:
-25°C
Полоса Пропускания:
16МГц
Скорость Нарастания:
55В/мкс
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
DIP
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
