OPA337NA/250 (TEXAS INSTRUMENTS)
Операционный усилитель, одиночный, 1 Усилитель, 3 МГц, 1.2 В/мкс, 2.5В до 5.5В, SOT-23
The OPA337NA/250 is a single CMOS Operational Amplifier with rail-to-rail output. At 1/4 the size of a conventional SO-8 surface-mount, it is ideal for space-sensitive applications. Utilizing advanced CMOS technology, the OPA337 op amp provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. It operate on a single supply with operation as low as 2.5V while drawing only 525µA quiescent current. In addition, the input common-mode voltage range includes ground-ideal for single-supply operation. The OPA337 series is unity-gain stable. It is easy-to-use and free from phase inversion and overload problems found in some other op amps. Excellent performance is maintained as the amplifier swing to their specified limits.
- 10pA Maximum FET-input
- 120dB High open-loop gain
- 525µA/amplifier Low quiescent current
- 2µV/°C Offset drift
- 90dB Typical CMRR
- Green product and no Sb/Br
Области применения
Переносные Устройства, Медицинское, Тестирование и Измерение, Аудио, Потребительская Электроника
Диапазон Напряжения Питания:
2.5В до 5.5В
Количество Выводов:
5вывод(-ов)
Количество Усилителей:
1 Усилитель
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Минимальная Рабочая Температура:
-40°C
Полоса Пропускания:
3МГц
Скорость Нарастания:
1.2В/мкс
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:

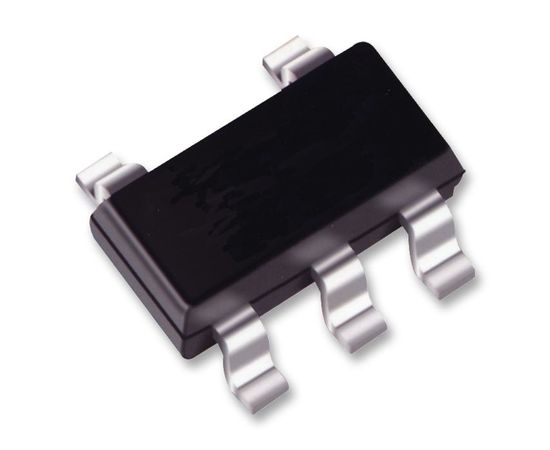

SOT-23
Тип упаковки:
Катушка
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
