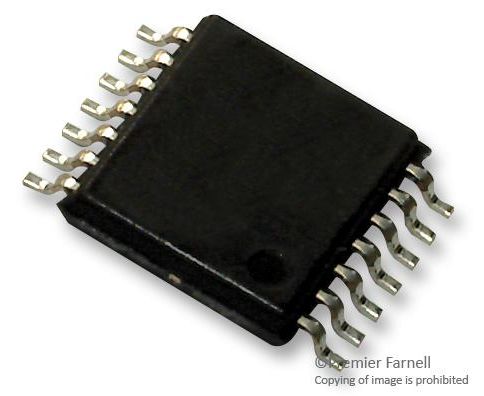

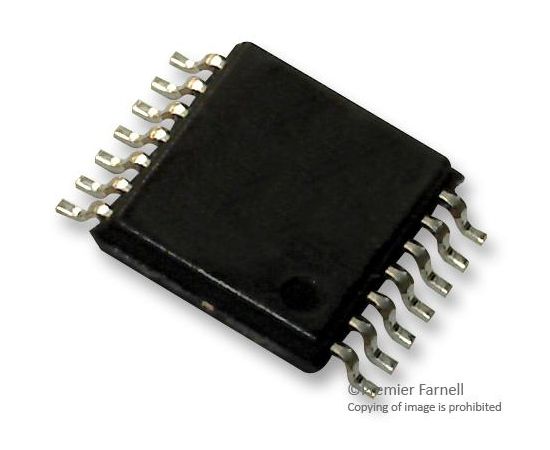

LMV324MT/NOPB (TEXAS INSTRUMENTS)
Операционный усилитель, одиночный, 4 Усилителя, 1 МГц, 1 В/мкс, 2.7В до 5.5В, TSSOP, 14 вывод(-ов)
The LMV324MT/NOPB is a general purpose low voltage Operational Amplifier with rail-to-rail output. It offers specifications that meet or exceed the familiar. It has rail-to-rail output swing capability and the input common-mode voltage range includes ground. It all exhibits excellent speed to power ratio, achieving 1MHz of bandwidth and 1V/µs slew rate with low supply current. It also allows the designer to place the device closer to the signal source to reduce noise pickup and increase signal integrity. It has bipolar input and output stages for improved noise performance and higher output current drive.
- No crossover distortion
- 410µA Low supply current
- 5µV/°C Typical offset drift
- 65dB Typical CMRR
- Green product and no Sb/Br
Области применения
Авто, Обработка Сигнала, Переносные Устройства
Диапазон Напряжения Питания:
2.7В до 5.5В
Количество Выводов:
14вывод(-ов)
Количество Усилителей:
4 Усилителя
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Минимальная Рабочая Температура:
-40°C
Полоса Пропускания:
1МГц
Скорость Нарастания:
1В/мкс
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
TSSOP
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
