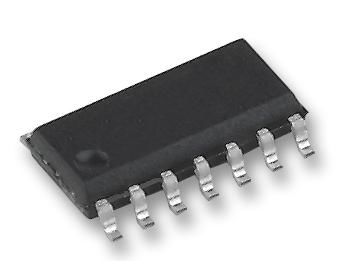

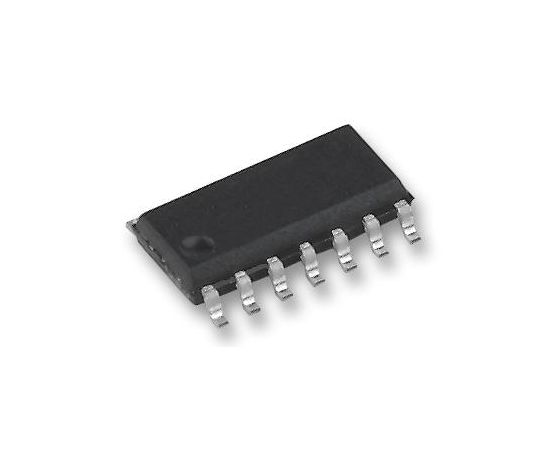

LM224DG (ON SEMICONDUCTOR)
Операционный усилитель, четверной, 4 Усилителя, 1 МГц, 0.6 В/мкс, 3В до 32В, SOIC, 14 вывод(-ов)
The LM224DG is a quad Operational Amplifier with true differential inputs. It has several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3V or as high as 32V with quiescent currents about one-fifth of those associated with the MC1741 (on a per amplifier basis). The common-mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
- Short-circuited protected outputs
- True differential input stage
- Internally compensated
- Common-mode range extends to negative supply
- Industry standard pin-outs
- ESD Clamps on the inputs increase ruggedness of the device without affecting operation
- Continuous output short-circuit duration
Области применения
Авто
Диапазон Напряжения Питания:
3В до 32В
Количество Выводов:
14вывод(-ов)
Количество Усилителей:
4 Усилителя
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Минимальная Рабочая Температура:
-40°C
Полоса Пропускания:
1МГц
Скорость Нарастания:
0.6В/мкс
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
SOIC
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
