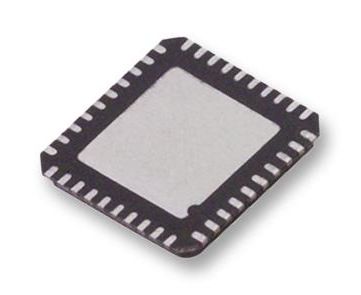

AD9540BCPZ (ANALOG DEVICES)
Clock Generator, 655 MHz, 1.8V supply, 1 Output, LFCSP-48
The AD9540BCPZ is a low-jitter Clock Generator designed to support the extremely stringent clocking requirements of the highest performance data converters. The device features high performance PLL (phase-locked loop) circuitry, including a flexible 200MHz phase frequency detector and a digitally controlled charge pump current. The device also provides a low jitter, 655MHz CML-mode, PECL-compliant output driver with programmable slew rates. External VCO rates up to 2.7GHz are supported. Extremely fine tuning resolution (steps less than 2.33µHz) is another feature supported by this device. Information is loaded into the AD9540 via a serial I/O port that has a device write speed of 25Mbps. The AD9540 frequency divider block can also be programmed to support a spread spectrum mode of operation.
- Excellent intrinsic jitter performance
- Software controlled power-down
- Programmable charge pump current
- Dual-mode PLL lock detect
- Programmable RF divider
- 200MHz Phase frequency detector inputs
- 655MHz Programmable input dividers for the phase frequency detector
- 8 Programmable phase/frequency profiles
- 400MSPS Internal DDS clock speed
- 48-bit Frequency tuning word resolution
- 14-bit Programmable phase offset
Области применения
Авто, Тестирование и Измерение, Считывание и Контрольно-измерительная Аппаратура
Предупреждения
ESD sensitive device. Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
Количество Выводов:
48вывод(-ов)
Количество Выходов:
1выход(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
1.8В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
-
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса ИС Тактового Генератора:
LFCSP
Тип Микросхемы Таймера:
Тактовый Генератор
Частота:
655МГц
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
