M24LR16E-RDW6T/2 (STMICROELECTRONICS)

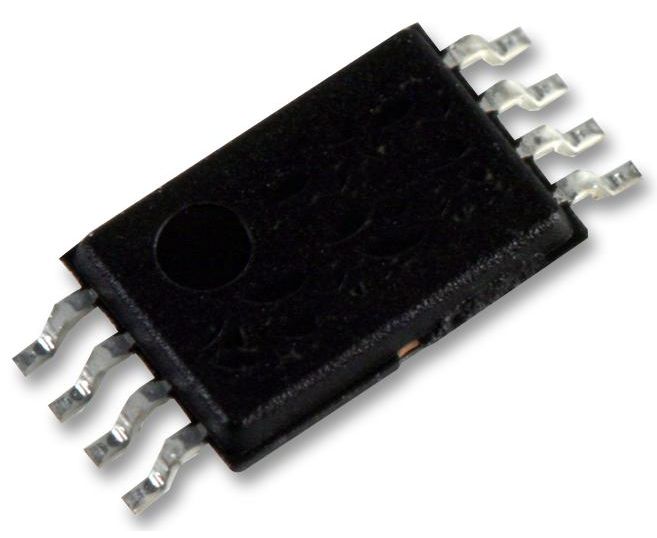

EEPROM, Serial I2C (2-Wire), 16 Кбит, 2К x 8бит, 400 кГц, TSSOP, 8 вывод(-ов)
The M24LR16E-RDW6T/2 is a 16kB Dynamic NFC/RFID tag IC with dual-interface, Electrically Erasable Programmable Read-Only Memory (EEPROM). It features an I?C interface and can be operated from a VCC power supply. It is also a contactless memory powered by the received carrier electromagnetic wave. The M24LR16E-R is organized as 2048 x 8-bit in the I?C mode and as 512 x 32-bit in the ISO 15693 and ISO 18000-3 mode 1 RF mode. The M24LR16E-R also features an energy harvesting analog output, as well as an user-configurable digital output pin toggling during either RF write in progress or RF busy mode.
- Internal tuning capacitance - 27.5pF
- 64-bit Unique identifier (UID)
- Read block and write (32-bit blocks)
- Digital output pin
- Analog pin for energy harvesting
- 4 Sink current configurable ranges
- Write time - 5ms maximum
- Write cycling endurance - 1million at 25°C and 120k write cycles at 85°C
- More than 40 years data retention
- Single password protection in I?C mode
Области применения
Компьютеры и Периферия, Промышленное, Связь и Сеть, Потребительская Электроника
Количество Выводов:
8вывод(-ов)
Конфигурация Памяти EEPROM:
2К x 8бит
Линейка Продукции:
16Kbit I2C Serial EEPROM
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
1.8В
Размер Памяти:
16Кбит
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Микросхемы Памяти:
TSSOP
Тактовая Частота:
400кГц
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
