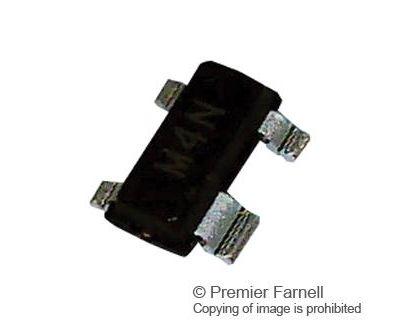

ADM811RARTZ-REEL7 (ANALOG DEVICES)

The ADM811RARTZ-REEL7 is a reliable voltage Supervisory Circuit suitable for use in most voltage monitoring applications. It is designed to monitor six different voltages, each allowing a 5 or 10% degradation of standard PSU voltages before a reset occurs. These voltages have been selected for the effective monitoring of 2.5, 3, 3.3 and 5V supply voltage levels. Included in this circuit is a debounced manual reset input. Reset can be activated using an electrical switch (or an input from another digital device) or by a degradation of the supply voltage. The manual reset function is very useful, especially if the circuit in which the ADM811 is operating enters into a state that can only be detected by the user. Allowing the user to reset a system manually can reduce the damage or danger that could otherwise be caused by an out-of-control or locked system.
