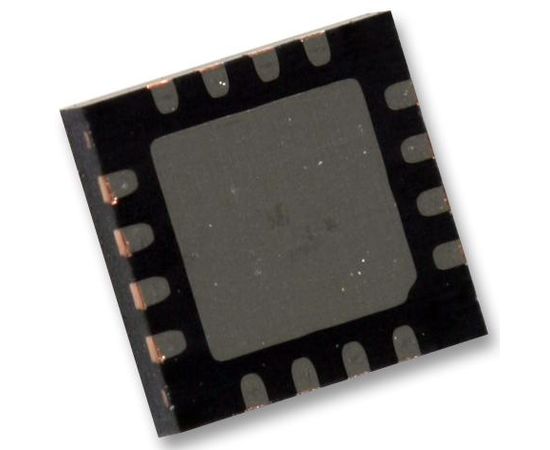

LTC4001EUF#PBF (LINEAR TECHNOLOGY)
Зарядное устройство для 1-элементной Li-Ion батареи, 5.5В вход, 4.2В/2.2А ток зарядки, QFN-16
The LTC4001EUF#PBF is a 2A Li-ion Battery Charger intended for 5V wall adapters. It utilizes a 1.5MHz synchronous buck converter topology to reduce power dissipation during charging. Low power dissipation, an internal MOSFET and sense resistor allow a physically small charger that can be embedded in a wide range of handheld applications. The LTC4001 includes complete charge termination circuitry, automatic recharge and a ±1% 4.2V float voltage. Input short-circuit protection is included so no blocking diode is required. Battery charge current, charge timeout and end-of-charge indication parameters are set with external components. Additional features include shorted cell detection, temperature qualified charging and overvoltage protection.
- Low power dissipation
- No external MOSFETs
- Sense resistor or blocking diode required
- Remote sensing at battery terminals
- Programmable charge termination timer
- Preset 4.2V float voltage with ±0.5% accuracy
- Programmable charge current detection/termination
- Automatic recharge
- Thermistor input for temperature qualified charging
- Compatible with current limited wall adapters
Области применения
Управление Питанием, Переносные Устройства, Компьютеры и Периферия
Входное Напряжение:
5.5В
Количество Выводов:
16вывод(-ов)
Количество Последовательных Ячеек:
1
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальный Ток Зарядки:
2А
Минимальная Рабочая Температура:
-40°C
Напряжение Зарядки Батареи:
4.2В
Соответствует Фталатам RoHS:
Да
Стиль Корпуса ИС Батареи:
QFN
Тип Батареи:
Литий-ионная
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
