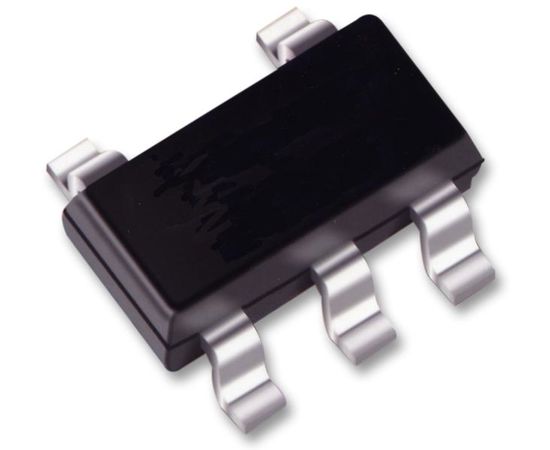

MCP1804T-C002I/OT (MICROCHIP)
Фиксированный стабилизатор с малым падением напряжения, 2В до 28В, 650мВ, 12В, 150мА, SOT-23-5
The MCP1804T-C002I/OT is a CMOS low dropout Voltage Regulator with shutdown can deliver up to 150mA of current while consuming only 50µA of quiescent current (typical, 1.8V = VOUT = 5V). The input operating range is specified from 2V to 28V. The MCP1804 is capable of delivering 100mA with only 1300mV (typical) of input to output voltage differential (VOUT = 3.3V). The output voltage tolerance of the MCP1804 at 25°C is a maximum of ±2%. Line regulation is ±0.15% typical at +25°C. The LDO input and output is stable with 0.1µF of input and output capacitance. Ceramic, tantalum or aluminium electrolytic capacitors can all be used for input and output. Over-current limit with current fold back to 40mA (typical) provides short-circuit protection. A shutdown (SHDN) function allows the output to be enabled or disabled. When disabled, the MCP1804 draws only 0.01µA of current (typical).
- 150mA Output current
- 50µA Typical quiescent current
- 0.01µA Typical shutdown current
- Output voltages from 1.8 to 18V in 0.1V increments
- ±2% Output voltage accuracy
- Stable with ceramic output capacitors down to 0.1µF
- Low dropout voltage, 260mV typical at 20mA, VR = 3.3V
- Current limit protection with current fold back
- 50dB Typical at 1kHz high PSRR
Области применения
Промышленное, Потребительская Электроника, Беспроводное, Компьютеры и Периферия, Управление Питанием, Авто
Предупреждения
ESD sensitive device, take proper precaution while handling the device.
Количество Выводов:
5вывод(-ов)
Линейка Продукции:
12V 150mA LDO Voltage Regulators
Максимальная Рабочая Температура:
85°C
Максимальное Входное Напряжение:
28В
Максимальное Регулируемое Выходное Напряжение:
-
Минимальная Рабочая Температура:
-40°C
Минимальное Входное Напряжение:
2В
Минимальное Регулируемое Выходное Напряжение:
-
Падение Напряжения Vdo:
650мВ
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Стабилизатора (LDO):
SOT-23
Тип Выхода:
Фиксированный
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
150мА
