MC78M08CDTRKG (ON SEMICONDUCTOR)
Фиксированный стабилизатор с малым падением напряжения, 7808, 35В (Vin), 2В, 8В/500мА выход

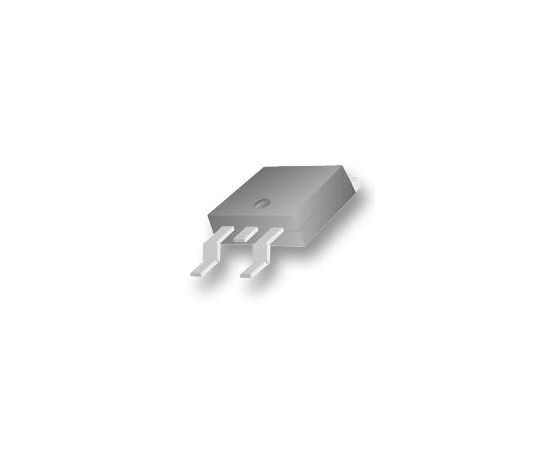

The MC78M08CDTRKG is a 500mA positive voltage regulator 3 pin TO-252 package. This positive voltage regulator is identical to the popular MC7800 series device, except that it is specified for only half the output current. The three-terminal regulator is intended for local, on-card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to make device remarkably rugged under most operating conditions. Maximum output current with adequate heatsinking.
- Maximum input voltage of 35V
- Output voltage of 8V
- Operating temperature range from 0°C to +125°C
- No external components required, internal thermal overload protection & high accuracy of ±2%
- Maximum line regulation of 50mV at (TJ = 25°C, 10.5VDC
- Maximum load regulation of 160mV at (TJ = 25°C, 5mA
- Maximum quiescent current change of 0.8mA at (10.5VDC
- Output noise voltage of 52µV at (TA = 25°C, 10Hz
- Dropout voltage of 2VDC (TJ = 25°C)
- Peak output current is 700mA at (TJ = 25°C)
Области применения
Управление Питанием
Количество Выводов:
3вывод(-ов)
Линейка Продукции:
8V 500mA LDO Voltage Regulators
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
35В
Максимальное Регулируемое Выходное Напряжение:
-
Минимальная Рабочая Температура:
0°C
Минимальное Входное Напряжение:
14В
Минимальное Регулируемое Выходное Напряжение:
-
Падение Напряжения Vdo:
2В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Стабилизатора (LDO):
TO-252
Тип Выхода:
Фиксированный
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
Lead (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
500мА
